ICS8MK0 - (ICS8Mx0) Crystal Oscillator

Download the ICS8MK0 datasheet PDF (ICS8MJ0 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for (ics8mx0) crystal oscillator.

Description

1 2 3 4 OE GND OUT VDD Input Power Output Power No internal terminator Internal pull-up resistor Output enable pin.

LVCMOS/LVTTL interface levels.

Power supply ground.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ICS8MJ0_IntegratedCircuitSystems.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ICS8MK0
Manufacturer Integrated Circuit Systems
File Size 269.53 KB
Description (ICS8Mx0) Crystal Oscillator
Datasheet download datasheet ICS8MK0 Datasheet

📁 Similar Datasheet

  • ICS810001-21 - FEMTOCLOCKS-TM DUAL VCXO VIDEO PLL (ICS)
  • ICS81006 - VCXO-TO-6 LVCMOS OUTPUTS (ICS)
  • ICS81006I - VCXO-TO-LVCMOS OUTPUTS (IDT)
  • ICS81006I - VCXO-TO-6 LVCMOS OUTPUTS (ICS)
  • ICS810251I - VCXO and Synchronous Ethernet Jitter Attenuator (Integrated Device Technology)
  • ICS813001I - LVPECL FEMTOCLOCK-TM PLL (ICS)
  • ICS83023 - DUAL 1-TO-1 DIFFERENTIAL-TO-LVCMOS TRANSLATOR/BUFFER (Integrated Circuit Solution)
  • ICS83023I - 1-TO-1 DIFFERENTIAL-TOLVCMOS TRANSLATOR/BUFFER (Integrated Device Technology)
  • ICS83026I-01 - 1-TO-2 DIFFERENTIAL-TO-LVCMOS/LVTTL FANOUT BUFFER (Integrated Device Technology)
  • ICS8304 - LOW SKEW / 1-TO-4 LVCMOS / LVTTL FANOUT BUFFER (Integrated Circuit Solution)
Other Datasheets by Integrated Circuit Systems
  • ICS8MG0 - (ICS8Mx0) Crystal Oscillator
  • ICS8MH0 - (ICS8Mx0) Crystal Oscillator
  • ICS8MJ0 - (ICS8Mx0) Crystal Oscillator
  • ICS82C404 - Dual Programmable Graphics Frequency Generator
  • ICS8302 - LOW SKEW 1-TO-2 LVCMOS / LVTTL FANOUT BUFFER
  • ICS8302-01 - 1-TO-2 LVCMOS / LVTTL FANOUT BUFFER W/ COMPLEMENTARY OUTPUT
  • ICS83021I - DIFFERENTIAL-TO-LVCMOS/LVTTL TRANSLATOR
  • ICS83023I - DIFFERENTIAL-TO-LVCMOS TRANSLATOR/BUFFER

Full PDF Text Transcription

Click to expand full text

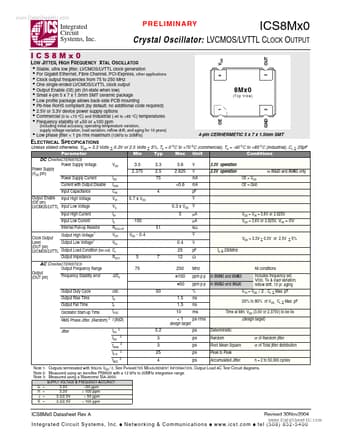

www.DataSheet4U.com Integrated Circuit Systems, Inc. PRELIMINARY ICS8Mx0 OUT VDD Crystal Oscillator: LVCMOS/LVTTL CLOCK OUTPUT ICS8Mx0 LOW JITTER, HIGH FREQUENCY XTAL OSCILLATOR • (including initial accuracy, operating temperature variation, supply voltage variation, load variation, reflow drift, and aging for 10 years) Low phase jitter < 1 ps rms maximum (12kHz to 20MHz) 4-pin CERHERMETIC 5 x 7 x 1.5mm SMT ELECTRICAL SPECIFICATIONS Unless stated otherwise, VDD = 3.3 Volts + 0.3V or 2.5 Volts + 5%, TA = 0 oC to +70 oC (commercial), TA = -40 oC to +85 oC (industrial), CL < 25pF Parameter Min Typ Max Unit Conditions DC CHARACTERISTICS Power Supply Voltage VDD 3.0 3.3 3.6 V 3.3V operation Power Supply 2.375 2.5 2.625 V 2.
