ICS8602 - DIFFERENTIAL-TO-LVCMOS/LVTTL CLOCK GENERATOR

Name: ICS8602
SKU: ICS8602-674181

Integrated Circuit Systems

📥 Download Datasheet

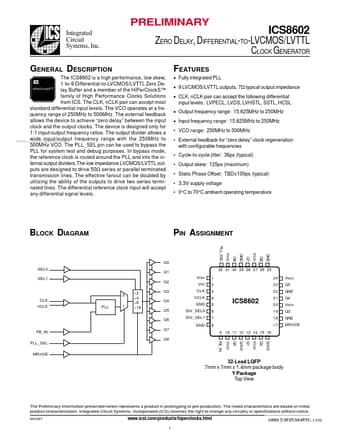

ICS8602 Datasheet Preview — Preview of ICS8602 PDF

Datasheet Details

Part number	ICS8602
Manufacturer	Integrated Circuit Systems
File Size	143.02 KB
Description	DIFFERENTIAL-TO-LVCMOS/LVTTL CLOCK GENERATOR
Datasheet	ICS8602_IntegratedCircuitSystems.pdf

ICS8602 Product details

Description

The ICS8602 is a high performance, low skew, ,&6 1-to-9 Differential-to-LVCMOS/LVTTL Zero DeHiPerClockS™ lay Buffer and a member of the HiPerClockS™ family of High Performance Clocks Solutions from ICS.

Features

Fully integrated PLL.
9 LVCMOS/LVTTL outputs, 7Ω typical output impedance.
CLK, nCLK pair can accept the following differential input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL.
Output frequency range: 15.625MHz to 250MHz.
Input frequency range: 15.625MHz to 250MHz.
VCO range: 250MHz to 500MHz.
External feedback for “zero delay” clock regeneration with configurable frequencies.
Cycle-to-cycle jitter: 36ps (typical).
