ICS843023 - 3.3V 250MHZ LVPECL CLOCK GENERATOR

Description

The ICS843023 is a Gigabit Ethernet Clock Generator and a member of the HiPerClocksTM HiPerClockS™ family of high performance devices from ICS.

The ICS843023 uses a 25MHz crystal to synthesize 250MHz.

20MHz integration

Features

  • 1 differential 3.3V LVPECL output.
  • Crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal.
  • Maximum output frequency: 250MHz, using a 25MHz crystal.
  • VCO range: 490MHz - 640MHz.
  • RMS phase jitter @ 250MHz, using a 25MHz crystal (12KHz - 20MHz): 0.33ps (typical).
  • 3.3V operating supply.
  • 0°C to 70°C ambient operating temperature.

📥 Download Datasheet

Datasheet Details

Part number ICS843023
Manufacturer Integrated Circuit Systems
File Size 202.51 KB
Description 3.3V 250MHZ LVPECL CLOCK GENERATOR
Datasheet download datasheet ICS843023 Datasheet

📁 Similar Datasheet

  • ICS843021I-01 - FEMTOCLOCKS CRYSTAL-TO-3.3V 2.5V LVPECL CLOCK GENERATOR (Integrated Device Technology)
  • ICS8430-62 - 2.5V Differential LVPECL Frequency Synthesizer (Integrated Device Technology)
  • ICS8430002 - High-Performance Fractional-N Frequency Synthesizer (Integrated Device Technology)
  • ICS843002I-40 - 175MHZ FEMTOCLOCKTM VCXO BASED SONET/SDH JITTER ATTENUATOR (Integrated Device Technology)
  • ICS843002I-41 - 700MHZ FEMTOCLOCKTM VCXO BASED SONET/SDH JITTER ATTENUATOR (Integrated Device Technology)
  • ICS843002I-72 - FEMTOCLOCKS VCXO BASED WCDMA CLOCK GENERATOR/JITTER ATTENUATOR (Integrated Device Technology)
  • ICS843004-125 - FemtoClock Crystal-to-3.3V LVPECL Frequency Synthesizer (Integrated Device Technology)
  • ICS8432-101 - DIFFERENTIAL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER (Renesas)
  • ICS8432-51 - CYRSTAL-TO-3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER (Renesas)
  • ICS84320-01 - CRYSTAL-TO-3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER (ICST)
Other Datasheets by Integrated Circuit Systems
  • ICS843023I - FEMTOCLOCKS CRYSTAL-TO-3.3V 2.5V LVPECL CLOCK GENERATOR
  • ICS843020-01 - FEMTOCLOCKS 680MHZ CRYSTAL-TO- 3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER
  • ICS843021 - FEMTOCLOCKS CRYSTAL-TO- 3.3V LVPECL CLOCK GENERATOR
  • ICS843022 - FEMTOCLOCKS CRYSTAL-TO- 3.3V LVPECL CLOCK GENERATOR
  • ICS8430252-45 - FEMTOCLOCKS CRYSTAL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER
  • ICS8430-111 - LOW JITTER DIFFERENTIAL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER
  • ICS8430-51 - LOW JITTER LVCMOS/LVTTL-TO-3.3V LVPECL FREQUENCY SYNTHESIZER
  • ICS8430-61 - CRYSTAL-TO-3.3V DIFFERENTIAL LVPECL FREQUENCY SYNTHESIZER

Full PDF Text Transcription

Click to expand full text

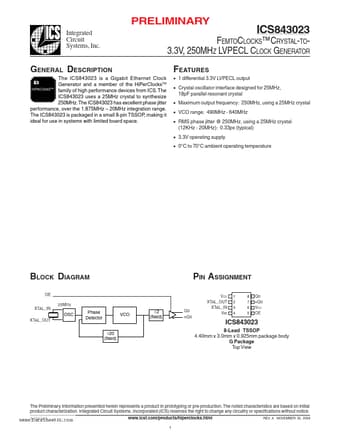

PRELIMINARY Integrated Circuit Systems, Inc. www.DataSheet4U.com ICS843023 FEMTOCLOCKS™ CRYSTAL-TO3.3V, 250MHZ LVPECL CLOCK GENERATOR FEATURES • 1 differential 3.3V LVPECL output • Crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal • Maximum output frequency: 250MHz, using a 25MHz crystal • VCO range: 490MHz - 640MHz • RMS phase jitter @ 250MHz, using a 25MHz crystal (12KHz - 20MHz): 0.33ps (typical) • 3.3V operating supply • 0°C to 70°C ambient operating temperature GENERAL DESCRIPTION The ICS843023 is a Gigabit Ethernet Clock Generator and a member of the HiPerClocksTM HiPerClockS™ family of high performance devices from ICS. The ICS843023 uses a 25MHz crystal to synthesize 250MHz. The ICS843023 has excellent phase jitter performance, over the 1.
