ICS840-125 - LVCMOS/LVTTL OSCILLATOR REPLACEMENT

Description

The ICS840-125 is a Gigabit Ethernet Oscillator Replacement and a member of the HiPerClockS™ HiPerClocks TM family of high perfor mance devices from ICS.

The ICS840-125 uses a 25MHz crystal to synthesize 125MHz.

The ICS840-125 has excellent jitter perfor mance.

Features

  • One LVCMOS/LVTTL output, 15Ω output impedance.
  • Crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal.
  • Output frequency: 125MHz.
  • Random jitter: 3.7ps (typical).
  • Deterministic jitter: 0.1ps (typical).
  • 3.3V operating supply.
  • 0°C to 70°C ambient operating temperature.
  • Available in both standard and lead-free RoHS-compliant packages.

📥 Download Datasheet

Datasheet Details

Part number ICS840-125
Manufacturer Integrated Circuit Systems
File Size 202.07 KB
Description LVCMOS/LVTTL OSCILLATOR REPLACEMENT
Datasheet download datasheet ICS840-125 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ICS840002I-01 CRYSTAL-TOLVCMOS/LVTTL FREQUENCY SYNTHESIZER IDT
ICS840022I-02 Crystal-to-LVCMOS/LVTTL Clock Generator Renesas
ICS840051I CRYSTAL-TOLVCMOS/LVTTL CLOCK GENERATOR Renesas
ICS840N021I-01 Clock Synthesizer Renesas
ICS840N202I Universal Frequency Translator Renesas

Other Datasheets by Integrated Circuit Systems

Part Number Description
ICS840-75 LVCMOS/LVTTL OSCILLATOR REPLACEMENT
ICS840-77 CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840001 CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840001-31 CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER
ICS840001-32 CRYSTAL-TO LVCMOS/LVTTL FREQUENCY SYNTHESIZER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

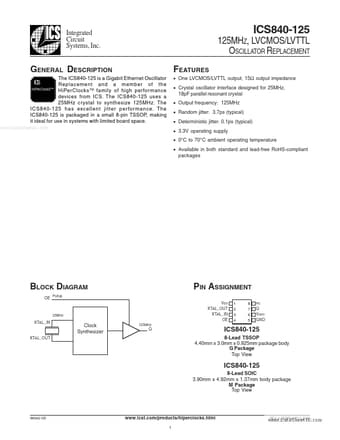

Integrated Circuit Systems, Inc. ICS840-125 125MHZ, LVCMOS/LVTTL OSCILLATOR REPLACEMENT FEATURES • One LVCMOS/LVTTL output, 15Ω output impedance • Crystal oscillator interface designed for 25MHz, 18pF parallel resonant crystal • Output frequency: 125MHz • Random jitter: 3.7ps (typical) • Deterministic jitter: 0.1ps (typical) • 3.3V operating supply • 0°C to 70°C ambient operating temperature • Available in both standard and lead-free RoHS-compliant packages GENERAL DESCRIPTION The ICS840-125 is a Gigabit Ethernet Oscillator Replacement and a member of the HiPerClockS™ HiPerClocks TM family of high perfor mance devices from ICS. The ICS840-125 uses a 25MHz crystal to synthesize 125MHz. The ICS840-125 has excellent jitter perfor mance.
