ICS83056I - SINGLE-ENDED MULTIPLEXER

Description

The ICS83056I is a low skew, 6:1, Single-ended Multiplexer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock Solutions from ICS.

The ICS83056I has six selectable singleended clock inputs and one single-ended clock output.

Features

  • 6:1 single-ended multiplexer.
  • Q nominal output impedance: 7Ω (VDDO = 3 .3V).
  • Maximum output frequency: 250MHz.
  • Propagation delay: 3ns (maximum), VDD = VDDO = 3.3V.
  • Input skew: 225ps (maximum), VDD = VDDO = 3.3V.
  • Part-to-part skew: 475ps (maximum), VDD = VDDO = 3.3V.
  • Operating supply modes: VDD/VDDO 3.3V/3.3V 3.3V/2.5V 3.3V/1.8V 2.5V/2.5V 2.5V/1.8V.
  • -40°C to 85°C ambient operating temperature.
  • Available in both stan.

📥 Download Datasheet

Datasheet Details

Part number ICS83056I
Manufacturer Integrated Circuit Systems
File Size 196.42 KB
Description SINGLE-ENDED MULTIPLEXER
Datasheet download datasheet ICS83056I Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ICS83056I-01 SINGLE-ENDED LVCMOS MULTIPLEXER Renesas
ICS8305 LVCMOS-to-LVCMOS/LVTTL Fanout Buffer Renesas
ICS8305I LVCMOS-TO-LVCMOS/LVTTL FANOUT BUFFER Renesas
ICS8305I MULTIPLEXED DIFFERENTIAL/LVCMOS-TO-LVCMOS/LVTTL FANOUT BUFFER Integrated Device Technology
ICS8305I-02 LVCMOS-to-LVCMOS Fanout Buffer Renesas

Other Datasheets by Integrated Circuit Systems

Part Number Description
ICS83056I-01 SINGLE-ENDED MULTIPLEXER
ICS8305 LOW SKEW / 1-TO-4 / MULTIPLEXED DIFFERENTIAL/ LVCMOS-TO-LVCMOS/LVTTL FANOUT BUFFER
ICS83052I SINGLE-ENDED MULTIPLEXER
ICS83052I-01 SINGLE-ENDED MULTIPLEXER
ICS83054I SINGLE-ENDED MULTIPLEXER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

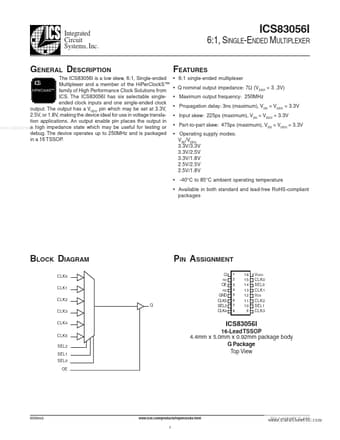

Integrated Circuit Systems, Inc. ICS83056I 6:1, SINGLE-ENDED MULTIPLEXER FEATURES • 6:1 single-ended multiplexer • Q nominal output impedance: 7Ω (VDDO = 3 .3V) • Maximum output frequency: 250MHz • Propagation delay: 3ns (maximum), VDD = VDDO = 3.3V • Input skew: 225ps (maximum), VDD = VDDO = 3.3V • Part-to-part skew: 475ps (maximum), VDD = VDDO = 3.3V • Operating supply modes: VDD/VDDO 3.3V/3.3V 3.3V/2.5V 3.3V/1.8V 2.5V/2.5V 2.5V/1.8V • -40°C to 85°C ambient operating temperature • Available in both standard and lead-free RoHS-compliant packages GENERAL DESCRIPTION The ICS83056I is a low skew, 6:1, Single-ended Multiplexer and a member of the HiPerClockS™ HiPerClockS™ family of High Performance Clock Solutions from ICS.
