ICS650R-07B, ICS650-07B - Broadcom Clock Source

Integrated Circuit Systems

📥 Download Datasheet

ICS650R-07B Datasheet Preview — This datasheet PDF includes multiple part numbers: ICS650R-07B, ICS650-07B. Please refer to the document for exact specifications by model.

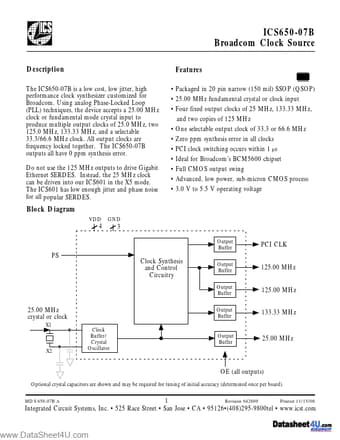

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ICS650R-07B, ICS650-07B
Manufacturer	Integrated Circuit Systems
File Size	103.98 KB
Description	Broadcom Clock Source
Datasheet	ICS650-07B_IntegratedCircuitSystems.pdf
Note	This datasheet PDF includes multiple part numbers: ICS650R-07B, ICS650-07B. Please refer to the document for exact specifications by model.

ICS650R-07B Product details

Description

The ICS650-07B is a low cost, low jitter, high performance clock synthesizer customized for Broadcom.

Features

Packaged in 20 pin narrow (150 mil) SSOP (QSOP).
25.00 MHz fundamental crystal or clock input.
Four fixed output clocks of 25 MHz, 133.33 MHz, and two copies of 125 MHz.
One selectable output clock of 33.3 or 66.6 MHz.
Zero ppm synthesis error in all clocks.
PCI clock switching occurs within 1 µs.
Ideal for Broadcom’s BCM5600 chipset.
Full CMOS output swing.
Advanced, low power, sub-micron CMOS process.
3.
