ICS650G-40, ICS650-40 - ETHERNET SWITCH CLOCK SOURCE

Integrated Circuit Systems

Datasheet Details

Part number	ICS650G-40, ICS650-40
Manufacturer	Integrated Circuit Systems
File Size	147.59 KB
Description	ETHERNET SWITCH CLOCK SOURCE
Datasheet	ICS650-40_IntegratedCircuitSystems.pdf
Note	This datasheet PDF includes multiple part numbers: ICS650G-40, ICS650-40. Please refer to the document for exact specifications by model.

The ICS650-40 is a clock chip designed for use in Ethernet Switch applications.

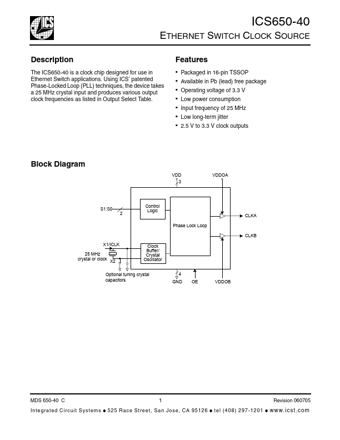

Packaged in 16-pin TSSOP Available in Pb (lead) free package Operating voltage of 3.3 V Low power consumption Input frequency of 25 MHz Low long-term jitter 2.5 V to 3.3 V clock outputs Block Diagram VDD 3 VDDOA S1:S0 2 Control Logic CLKA Phase Lock Loop CLKB X1/ICLK 25 MHz crystal or clock X2 Clock Buffer/ Crystal Oscillator 4 GND OE VDDOB Optional tuning crystal capacitors MDS 650-40 C I n t e gra te d C i r c u i t.
