ICS348 - Quad PLL Field Programmable VersaClock Synthesizer

Name: ICS348
SKU: ICS348-669116

Integrated Circuit Systems

📥 Download Datasheet

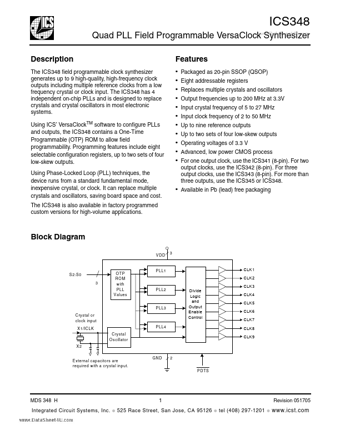

ICS348 Datasheet Preview — Preview of ICS348 PDF

Datasheet Details

Part number	ICS348
Manufacturer	Integrated Circuit Systems
File Size	180.68 KB
Description	Quad PLL Field Programmable VersaClock Synthesizer
Datasheet	ICS348_IntegratedCircuitSystems.pdf

ICS348 Product details

Description

The ICS348 field programmable clock synthesizer generates up to 9 high-quality, high-frequency clock outputs including multiple reference clocks from a low frequency crystal or clock input.

Features

include eight selectable configuration registers, up to two sets of four low-skew outputs. Using Phase-Locked Loop (PLL) techniques, the device runs from a standard fundamental mode, inexpensive crystal, or clock. It can replace multiple crystals and oscillators, saving board space and cost. The ICS348 is also available in factory programmed custom versions for high-volume.
