IZD1520 - CMOS DOT MATRIX LCD DRIVER

Integral

📥 Download Datasheet

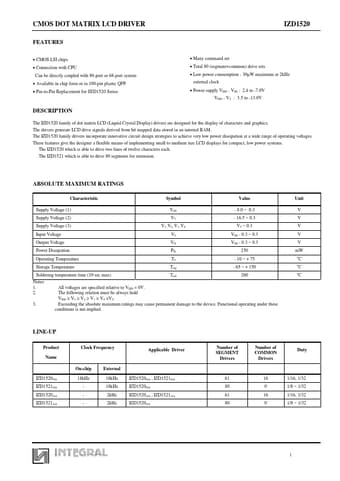

IZD1520 Datasheet Preview — Preview of IZD1520 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IZD1520
Manufacturer	Integral
File Size	151.54 KB
Description	CMOS DOT MATRIX LCD DRIVER
Datasheet	IZD1520-Integral.pdf

IZD1520 Product details

Description

The IZD1520 family of dot matrix LCD (Liquid Crystal Display) drivers are designed for the display of characters and graphics.

Features

CMOS LSI chips.
Connection with CPU Can be directly coupled with 80-port or 68-port system.
Available in chip form or in 100-pin plastic QFP.
Pin-to-Pin Replacement for SED1520 Series.
Many command set.
Total 80 (segment+common) drive sets.
Low power consumption - 30µW maximum at 2kHz external clock.
Power supply VDD - VSS : 2.4 to -7.0V VDD - V5 : 3.5 to -13.0V.
