IWR0520U - HIGH VOLTAGE FAST RECTIFIER DIODES & DIODES

Download the IWR0520U datasheet PDF. This datasheet also covers the IWR0520F variant, as both devices belong to the same high voltage fast rectifier diodes & diodes family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IWR0520F-Integral.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IWR0520U
Manufacturer Integral
File Size 109.78 KB
Description HIGH VOLTAGE FAST RECTIFIER DIODES & DIODES
Datasheet download datasheet IWR0520U Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IWR1443 Single-Chip 76- to 81-GHz mmWave Sensor Texas Instruments
IWR1642 Single-Chip 76- to 81-GHz mmWave Sensor Texas Instruments
IWR1843 Single-Chip 76- to 81-GHz FMCW mmWave Sensor Texas Instruments
IWR6243 Single-Chip 57- to 64-GHz FMCW Transceiver Texas Instruments
IWR6443 Single-Chip 60 to 64-GHz mmWave Sensor Texas Instruments

Other Datasheets by Integral

Part Number Description
IWR0520UM HIGH VOLTAGE FAST RECTIFIER DIODES & DIODES
IWR0520F HIGH VOLTAGE FAST RECTIFIER DIODES & DIODES
IWR0520FM HIGH VOLTAGE FAST RECTIFIER DIODES & DIODES
IWR0260U HIGH VOLTAGE FAST RECTIFIER DIODES & DIODES

Full PDF Text Transcription

Click to expand full text

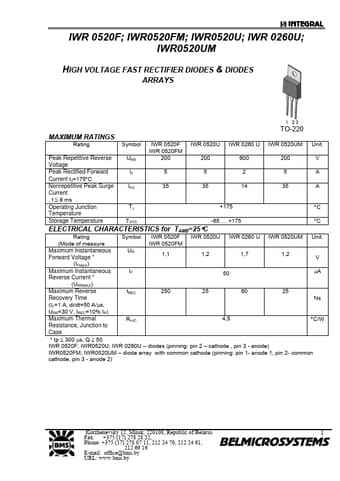

IWR 0520F; IWR0520FM; IWR0520U; IWR 0260U; IWR0520UM HIGH VOLTAGE FAST RECTIFIER DIODES & DIODES ARRAYS 1 23 TO-220 MAXIMUM RATINGS Rating Symbol IWR 0520F IWR 0520U IWR 0260 U IWR 0520UM Unit. IWR 0520FM Peak Repetitive Reverse URR 200 200 600 200 V Voltage Peak Rectified Forward IF 5 5 2 Current tJ=175°C Nonrepetitive Peak Surge IFS 35 35 14 5A 35 A Current , t ≤ 8 ms Operating Junction TJ +175 °C Temperature Storage Temperature TSTG -65 … +175 °C ELECTRICAL CHARACTERISTICS for ТAMB=25°C Rating Symbol IWR 0520F IWR 0520U IWR 0260 U IWR 0520UM Unit. (Mode of measure IWR 0520FM Maximum Instantaneous Forward Voltage * (IFMAX) Maximum Instantaneous Reverse Current * (URRMAX) Maximum Reverse Recovery Time UR. IF.
