IN93AA86D, IN93AA86N - 16K-BIT SERIAL EEPROM

Integral

📥 Download Datasheet

IN93AA86D Datasheet Preview — This datasheet PDF includes multiple part numbers: IN93AA86D, IN93AA86N. Please refer to the document for exact specifications by model.

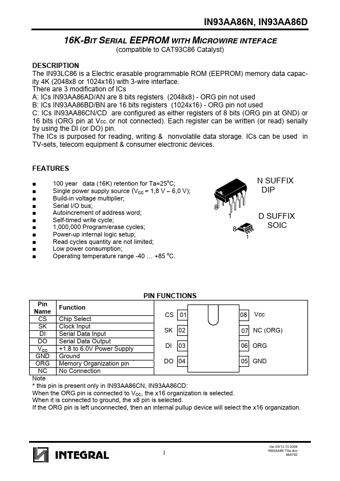

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IN93AA86D, IN93AA86N
Manufacturer	Integral
File Size	212.60 KB
Description	16K-BIT SERIAL EEPROM
Datasheet	IN93AA86N-Integral.pdf
Note	This datasheet PDF includes multiple part numbers: IN93AA86D, IN93AA86N. Please refer to the document for exact specifications by model.

IN93AA86D Product details

Description

The IN93LC86 is a Electric erasable programmable ROM (EEPROM) memory data capacity 4K (2048x8 or 1024x16) with 3-wire interface.

Features

100 year data (16K) retention for Ta=25oC;.
Single power supply source (VСС = 1,8 V.
6,0 V);.
Build-in voltage multiplier;.
Serial I/O bus;.
Autoincrement of address word;.
Self-timed write cycle;.
1,000,000 Program/erase cycles;.
Power-up internal logic setup;.
Read cycles quantity are not limited;.
Low power consumption;.
Operating temperature range -40 … +85 oC. N SUFFIX DIP 8 1 D SUFFIX 8 SOIC 1 PIN.
