ILE4276V10G, ILE4276V50G ICs of voltage regulator

Integral

Description

ILE4276VXXG, ILE4276VXXS ICs of voltage regulator 5V/400mA, 8.5V/400mA, 10V/400mA and adjustable with low drop voltage (FUNCTIONAL EQUIVALENT OF TLE4.
Chip pad number 01 02 03 04 Package pin number 01 02 03 04 05 05 Symbol I INH GND NC VA Q Function Input Inhibit input Common pin (Ground) For IL.

📥 Download Datasheet

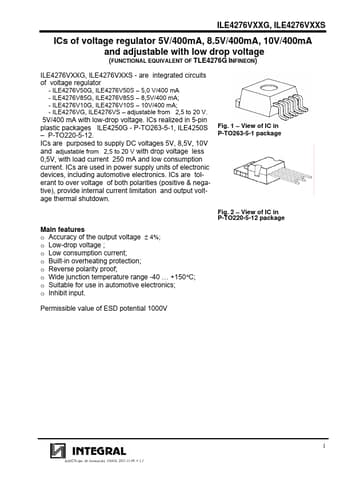

ILE4276V10G Datasheet Preview — This datasheet PDF includes multiple part numbers: ILE4276V10G, ILE4276V50G. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: ILE4276V10G, ILE4276V50G
Manufacturer: Integral
File Size: 125.45 KB
Datasheet: ILE4276V50G-Integral.pdf
Description: ICs of voltage regulator
Note: This datasheet PDF includes multiple part numbers: ILE4276V10G, ILE4276V50G.
Please refer to the document for exact specifications by model.

Features

* o Accuracy of the output voltage ± 4%; o Low-drop voltage ; o Low consumption current; o Built-in overheating protection; o Reverse polarity proof; o Wide junction temperature range -40 … +150°C; o Suitable for use in automotive electronics; o Inhibit input. Fig. 2
* View of IC in P-TO220-5
