IA63484, IA6 - Advanced CRT Controller

InnovASIC

IA63484 Datasheet Preview — This datasheet PDF includes multiple part numbers: IA63484, IA6. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IA63484, IA6
Manufacturer	InnovASIC
File Size	170.85 KB
Description	Advanced CRT Controller
Datasheet	IA6-3484.pdf
Note	This datasheet PDF includes multiple part numbers: IA63484, IA6. Please refer to the document for exact specifications by model.

IA63484 Product details

Description

, electrical characteristics, and applicable timing. 888 824 4184 IA63484 Advanced CRT Controller 68 Pin Package: PLCC PINOUT Pin Arrangement: Preliminary Data Sheet dreq_n done_n(O,D) res_n rs cs_n rw_n cud2_n cud1_n Vcc lpstb disp1_n disp2_n mad0(T) mad1(T) mad2(T) mad3(T) mad4(T) dack_n dtack_n(T) irq(O,D) hsync_n vsync_n Vcc exsync_n Vss Vss d0

Features

Preliminary Data Sheet innovASIC.

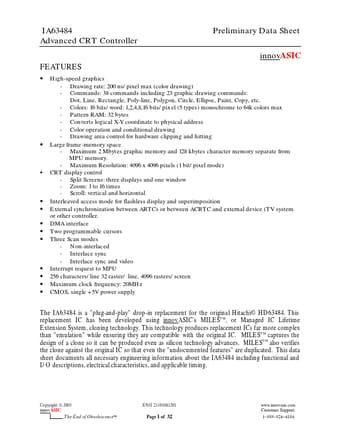

High-speed graphics - Drawing rate: 200 ns/pixel max (color drawing) - Commands: 38 commands including 23 graphic drawing commands: Dot, Line, Rectangle, Poly-line, Polygon, Circle, Ellipse, Paint, Copy, etc. - Colors: 16 bits/word: 1,2,4,8,16 bits/pix el (5 types) monochrome to 64k colors max - Pattern RAM: 32 bytes - Converts logical X-Y.
