AC243433

The AC243433 is 2.3GHz - 2.7GHz High Linearity Power Amplifier designed by Innogration.

Product Overview

Innogration

📥 Download Datasheet

AC243433 2.3GHz - 2.7GHz High Linearity Power Amplifier by Innogration - Datasheet Preview — Datasheet preview – AC243433

Datasheet Details

Part number	AC243433
Manufacturer	Innogration
File Size	1.20 MB
Description	2.3GHz - 2.7GHz High Linearity Power Amplifier
Datasheet	AC243433-Innogration.pdf

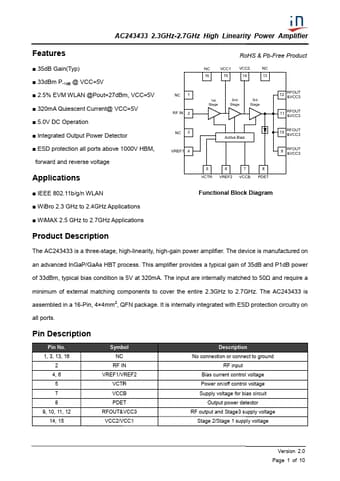

Additional preview pages of the AC243433 datasheet.

Product details

Description

The AC243433 is a three-stage, high-linearity, high-gain power amplifier.

Features

35dB Gain(Typ).
33dBm P-1dB @ VCC=5V.
2.5% EVM WLAN @Pout=27dBm, VCC=5V.
320mA Quiescent Current@ VCC=5V.
5.0V DC Operation.
Integrated Output Power Detector.
ESD protection all ports above 1000V HBM, forward and reverse voltage.
