IP6831 - 2W Wireless Charging and Receiving Chip

Injoinic

📥 Download Datasheet

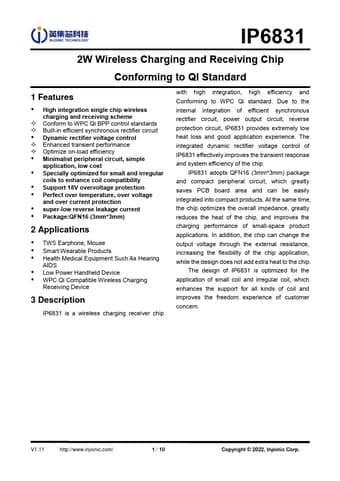

IP6831 Datasheet Preview — Preview of IP6831 PDF

Datasheet Details

Part number	IP6831
Manufacturer	Injoinic
File Size	1.06 MB
Description	2W Wireless Charging and Receiving Chip
Datasheet	IP6831-Injoinic.pdf

IP6831 Product details

Description

IP6831 is a wireless charging receiver chip with high integration, high efficiency and Conforming to WPC Qi standard.Due to the internal integration of efficient synchronous rectifier circuit, power output circuit, reverse protection circuit, IP6831 provides extremely low heat loss and good application experience.The integrated dynamic rectifier voltage control of IP6831 effectively improves the transient response and system efficiency of the chip.IP6831 adopts QFN16 (3mm 3mm) package an

Features

High integration single chip wireless charging and receiving scheme.
Conform to WPC Qi BPP control standards.
Built-in efficient synchronous rectifier circuit.
Dynamic rectifier voltage control.
Enhanced transient performance.
Optimize on-load efficiency.
Minimalist peripheral circuit, simple.
