IP2188 - Fast Charging Physical Layer

Injoinic

📥 Download Datasheet

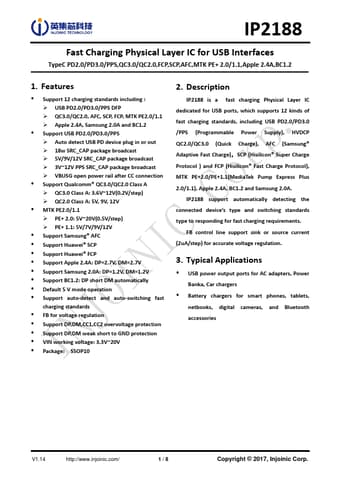

IP2188 Datasheet Preview — Preview of IP2188 PDF

Datasheet Details

Part number	IP2188
Manufacturer	Injoinic
File Size	649.55 KB
Description	Fast Charging Physical Layer
Datasheet	IP2188-Injoinic.pdf

IP2188 Product details

Description

IP2188 is a fast charging Physical Layer IC dedicated for USB ports, which supports 12 kinds of fast charging standards, including USB PD2.0/PD3.0 /PPS (Programmable Power Supply), HVDCP QC2.0/QC3.0 (Quick Charge), AFC (Samsung® Adaptive Fast Charge)，SCP (Hisilicon® Super Charge Protocol ) and FCP (Hisilicon® Fast Charge Protocol), MTK PE+2.0/PE+1.1(MediaTek Pump Express Plus 2.0/1.1), Apple 2.4A, BC1.2 and Samsung 2.0A.

Features

Support 12 charging standards including :.
USB PD2.0/PD3.0/PPS DFP.
QC3.0/QC2.0, AFC, SCP, FCP, MTK PE2.0/1.1.
Apple 2.4A, Samsung 2.0A and BC1.2.
Support USB PD2.0/PD3.0/PPS.
Auto detect USB PD device plug in or out.
18w SRC_CAP package broadcast.
5V/9V/12V SRC_CAP package broadcast.
3V~12V PPS SRC_CAP package broadcast.
VBUSG open power rail after CC connection.
Support Qualcomm® QC3.0/QC2.0 Class A.
QC3.0 Class A: 3.6V~12V(0.2V/step.
