WCDSC006 - half bridge driver

Product Overview

Infineon

📥 Download Datasheet

WCDSC006 half bridge driver by Infineon - Datasheet Preview — Datasheet preview – WCDSC006

Datasheet Details

Part number	WCDSC006
Manufacturer	Infineon
File Size	1.34 MB
Description	half bridge driver
Datasheet	WCDSC006 Datasheet

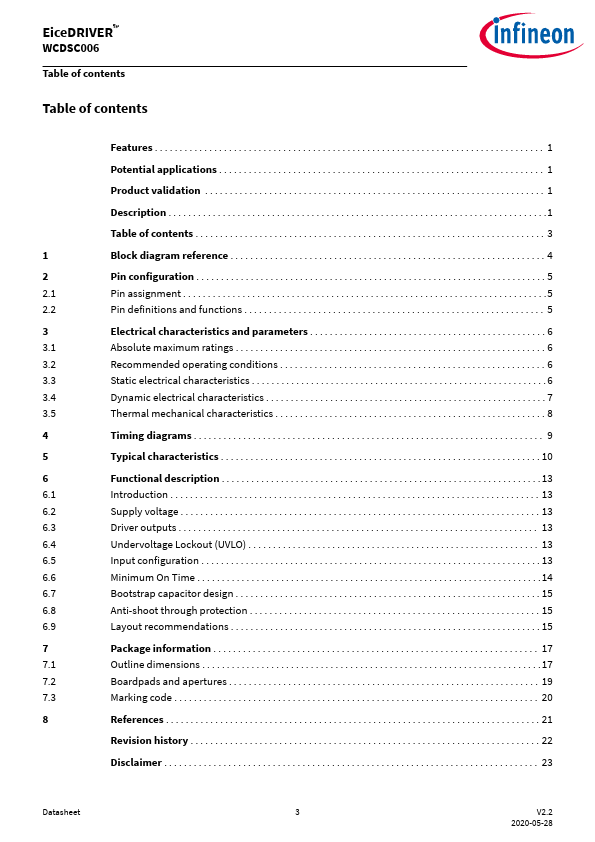

Additional preview pages of the WCDSC006 datasheet.

Product details

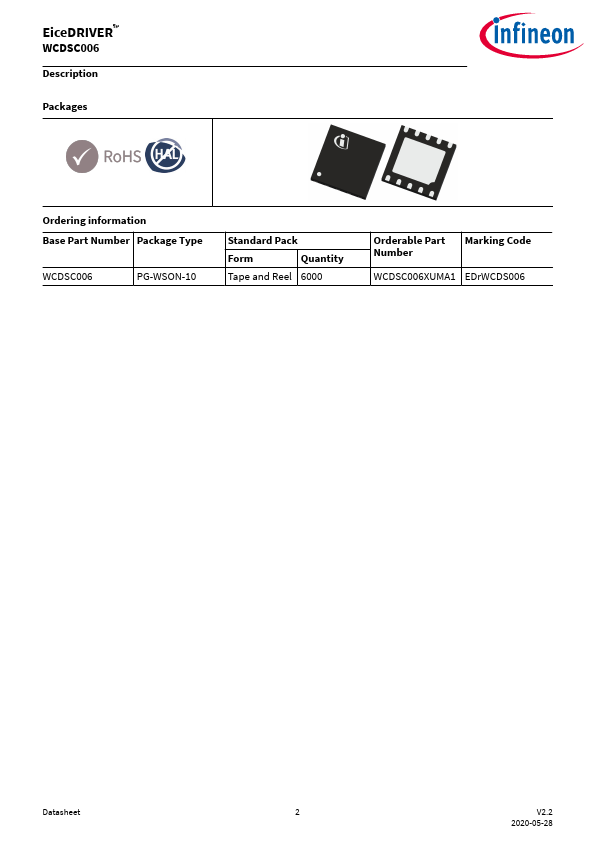

Description

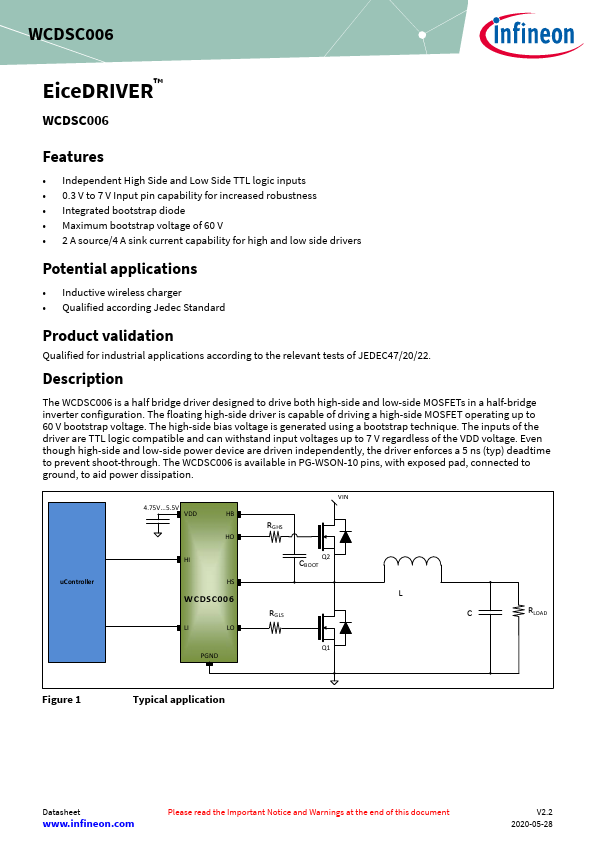

The WCDSC006 is a half bridge driver designed to drive both high-side and low-side MOSFETs in a half-bridge inverter configuration.

Features

Independent High Side and Low Side TTL logic inputs.
0.3 V to 7 V Input pin capability for increased robustness.
Integrated bootstrap diode.
Maximum bootstrap voltage of 60 V.
2 A source/4 A sink current capability for high and low side drivers Potential.
