TLS115B0LD - linear voltage regulator

Infineon

The TLS115B0LD by Infineon is a linear voltage regulator. Below is the official datasheet preview.

📥 Download Datasheet

TLS115B0LD linear voltage regulator by Infineon - Datasheet Preview — Official preview page of the **TLS115B0LD** linear voltage regulator datasheet (Infineon).

Datasheet Details

Part number	TLS115B0LD
Manufacturer	Infineon
File Size	1.75 MB
Description	linear voltage regulator
Datasheet	TLS115B0LD-Infineon.pdf

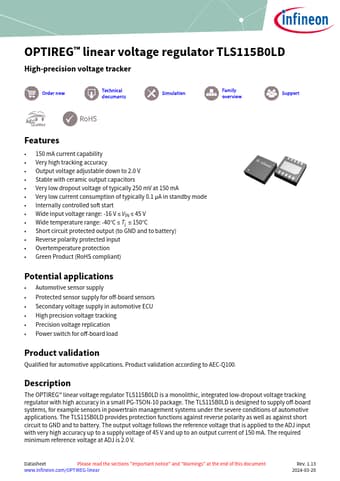

Additional preview pages of the TLS115B0LD datasheet.

TLS115B0LD Product details

Description

The OPTIREG™ linear voltage regulator TLS115B0LD is a monolithic, integrated low-dropout voltage tracking regulator with high accuracy in a small PG-TSON-10 package.

Features

150 mA current capability.
Very high tracking accuracy.
Output voltage adjustable down to 2.0 V.
Stable with ceramic output capacitors.
Very low dropout voltage of typically 250 mV at 150 mA.
Very low current consumption of typically 0.1 µA in standby mode.
Internally controlled soft start.
Wide input voltage range: -16 V ≤ VIN ≤ 45 V.
Wide temperature range: -40°C ≤ Tj ≤ 150°C.
Short circuit protected out.
