TLI5570 - cost optimized miniature TMR current sensor

Infineon

The TLI5570 by Infineon is a cost optimized miniature TMR current sensor. Below is the official datasheet preview.

Datasheet Details

Part number	TLI5570
Manufacturer	Infineon
File Size	611.47 KB
Description	cost optimized miniature TMR current sensor
Datasheet	TLI5570-Infineon.pdf

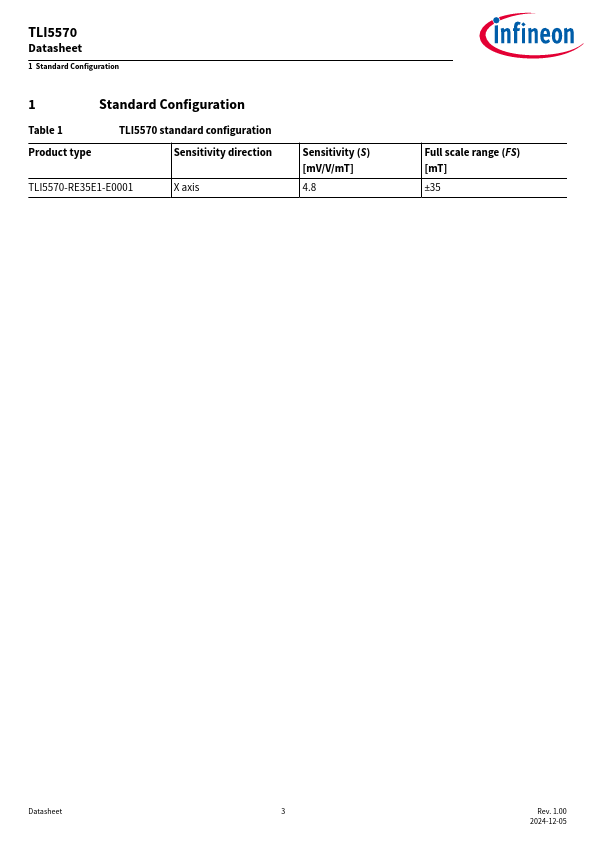

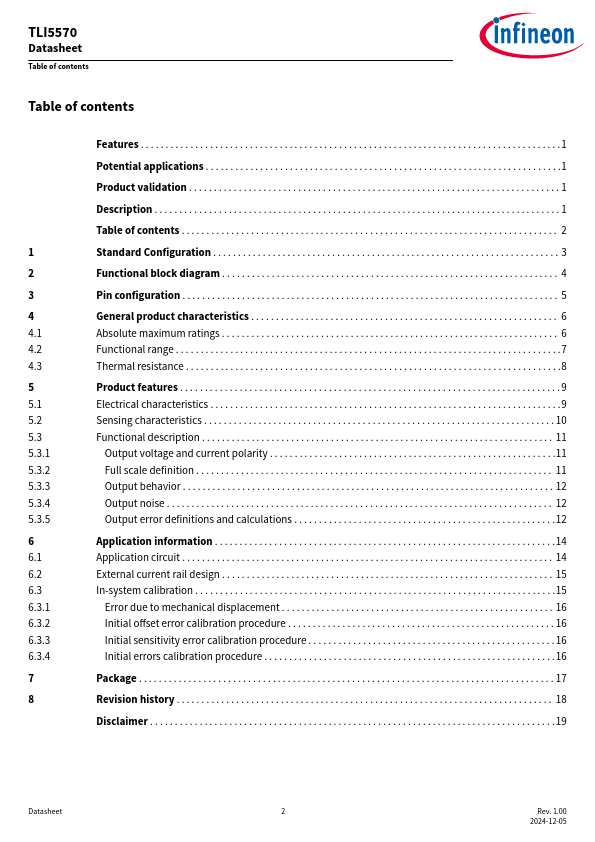

Additional preview pages of the TLI5570 datasheet.

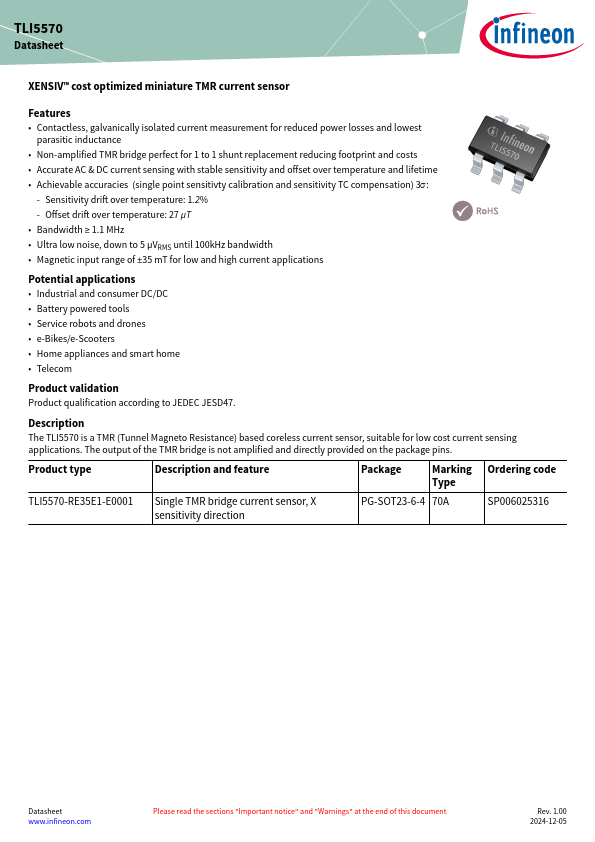

The TLI5570 is a TMR (Tunnel Magneto Resistance) based coreless current sensor, suitable for low cost current sensing applications.

Contactless, galvanically isolated current measurement for reduced power losses and lowest parasitic inductance.
Non-amplified TMR bridge perfect for 1 to 1 shunt replacement reducing footprint and costs.
Accurate AC & DC current sensing with stable sensitivity and offset over temperature and lifetime.
Achievable accuracies (single point sensitivty calibration and sensitivity TC compensation) 3σ: - Sensitivity drift over temperature: 1.2% - Offset drift over.
