TLF35585QUS02 - Functional safety PMIC

Infineon

The TLF35585QUS02 by Infineon is a Functional safety PMIC. Below is the official datasheet preview.

📥 Download Datasheet

TLF35585QUS02 Functional safety PMIC by Infineon - Datasheet Preview — Official preview page of the **TLF35585QUS02** Functional safety PMIC datasheet (Infineon).

Datasheet Details

Part number	TLF35585QUS02
Manufacturer	Infineon
File Size	588.42 KB
Description	Functional safety PMIC
Datasheet	TLF35585QUS02-Infineon.pdf

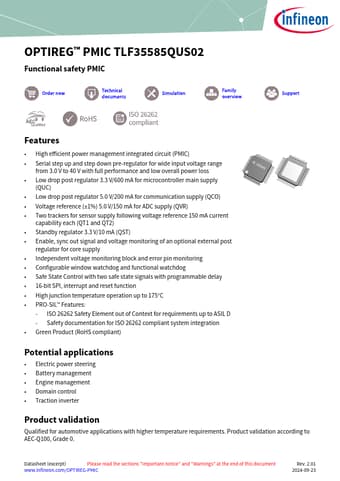

Additional preview pages of the TLF35585QUS02 datasheet.

TLF35585QUS02 Product details

Description

Description The OPTIREG™ PMIC TLF35585QUS02 is a highly efficient Functional Safety PMIC (Power management integrated circuit) for safety-relevant applications.The power supply includes a boost-buck pre-regulator supplying post regulator rails for microcontroller supply, communication supply and a precise voltage reference.In addition, two trackers following the voltage reference are available to supply off-board sensors.The OPTIREG™ PMIC TLF35585QUS02 comes with a configurable window watch

Features

High efficient power management integrated circuit (PMIC).
Serial step up and step down pre-regulator for wide input voltage range from 3.0 V to 40 V with full performance and low overall power loss.
Low drop post regulator 3.3 V/600 mA for microcontroller main supply (QUC).
Low drop post regulator 5.0 V/200 mA for communication supply (QCO).
Voltage reference (±1%) 5.0 V/150 mA for ADC supply (QVR).
Two trackers for sensor supply following.
