TLE9879QXW40 - microcontroller

Infineon

The TLE9879QXW40 by Infineon is a microcontroller. Below is the official datasheet preview.

📥 Download Datasheet

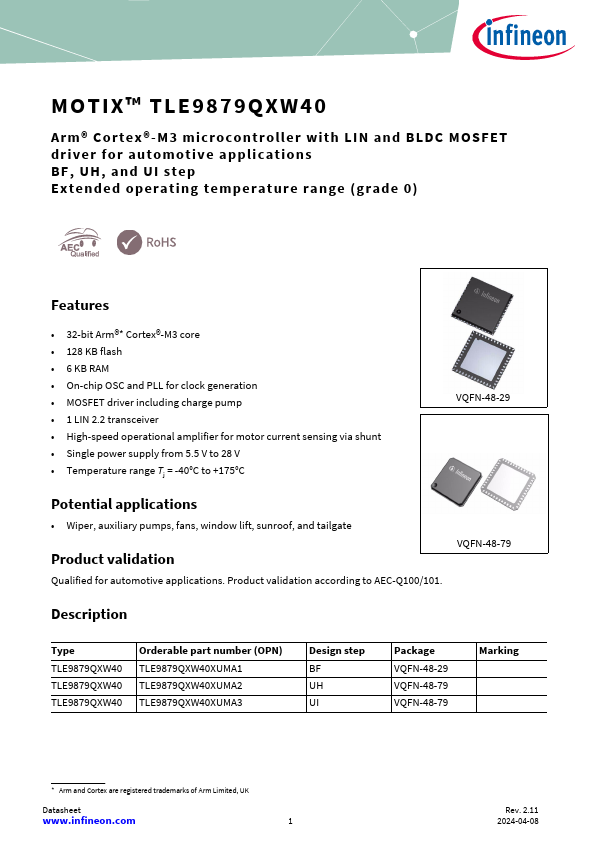

TLE9879QXW40 microcontroller by Infineon - Datasheet Preview — Official preview page of the **TLE9879QXW40** microcontroller datasheet (Infineon).

Datasheet Details

Part number	TLE9879QXW40
Manufacturer	Infineon
File Size	1.29 MB
Description	microcontroller
Datasheet	TLE9879QXW40-Infineon.pdf

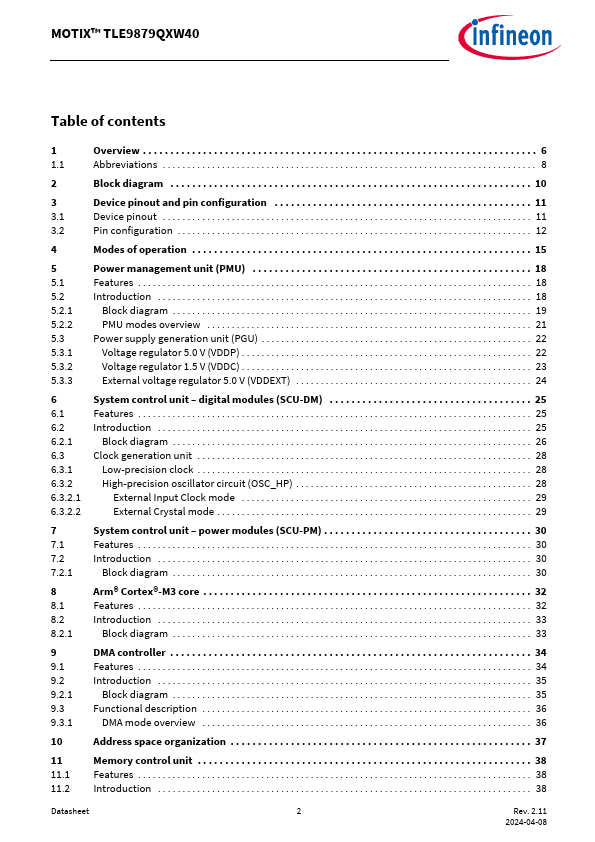

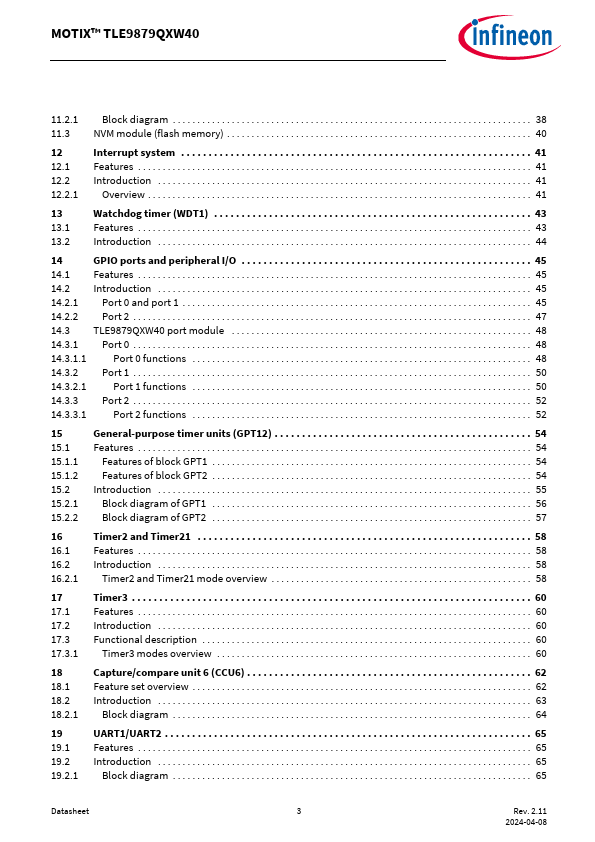

Additional preview pages of the TLE9879QXW40 datasheet.

TLE9879QXW40 Product details

Description

Type TLE9879QXW40 TLE9879QXW40 TLE9879QXW40 Orderable part number (OPN) TLE9879QXW40XUMA1 TLE9879QXW40XUMA2 TLE9879QXW40XUMA3 Design step BF UH UI Package VQFN-48-29 VQFN-48-79 VQFN-48-79 Marking Arm and Cortex are registered trademarks of Arm Limited, UK Datasheet www.infineon.com 1 Rev.2.11 2024-04-08 MOTIX™ TLE9879QXW40 Table of contents 1 Overview

Features

32-bit Arm®.
Cortex®-M3 core.
128 KB flash.
6 KB RAM.
On-chip OSC and PLL for clock generation.
MOSFET driver including charge pump.
1 LIN 2.2 transceiver.
High-speed operational amplifier for motor current sensing via shunt.
Single power supply from 5.5 V to 28 V.
Temperature range Tj = -40°C to +175°C VQFN-48-29 Potential.
