TLE9877QTW40 - microcontroller

Description

Type Orderable part number (OPN) Design step TLE9877QTW40 TLE9877QTW40XUMA1 BF Package TQFP-48-10

Rev.

Features

  • 32-bit Arm®.
  • Cortex®-M3 core.
  • 64 KB flash.
  • 6 KB RAM.
  • On-chip OSC and PLL for clock generation.
  • MOSFET driver including charge pump.
  • 1 LIN 2.2 transceiver.
  • High-speed operational amplifier for motor current sensing via shunt.
  • Single power supply from 5.5 V to 28 V.
  • Temperature range Tj = -40°C to +175°C Potential.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TLE9832 Microcontroller Infineon Technologies
TLE9834QX Microcontroller Infineon Technologies
TLE9835QX Microcontroller Infineon Technologies
TLE9201SG 6A H-Bridge Infineon Technologies
TLE9266-2QX System Basis Chip Infineon Technologies

Other Datasheets by Infineon

Part Number Description
TLE9877QXA40 Microcontroller
TLE9877QXW40 microcontroller
TLE9871QXA20 Microcontroller
TLE9872-2QXA40 microcontroller
TLE9872-2QXW40 Microcontroller

Full PDF Text Transcription

Click to expand full text

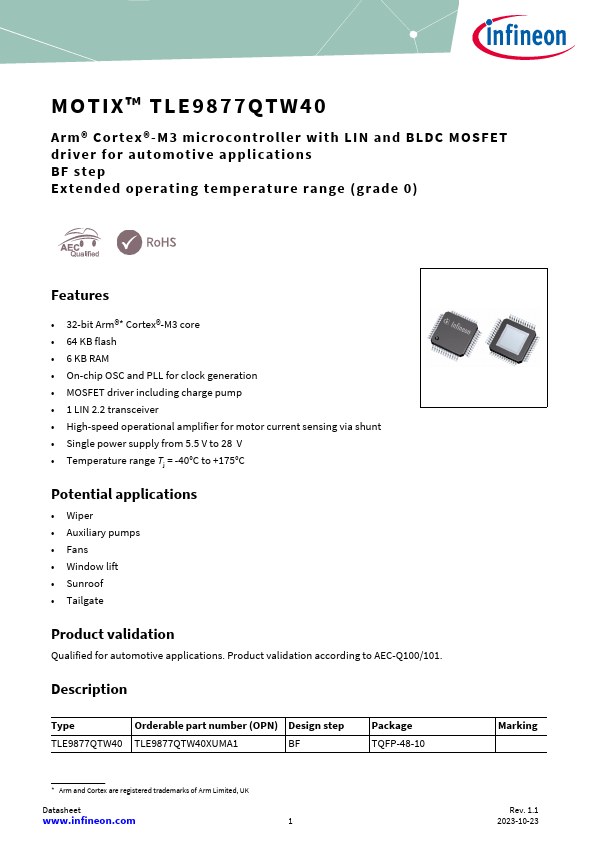

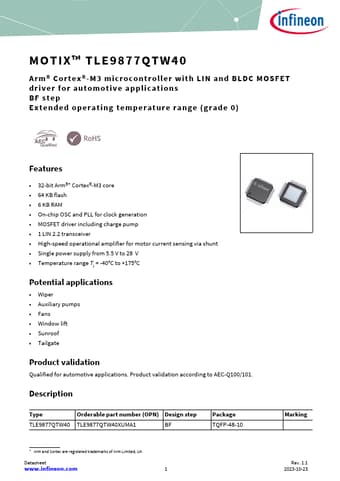

MOTIX™ TLE9877QTW40 Arm® Cortex®-M3 microcontroller with LIN and BLDC MOSFET driver for automotive applications BF step Extended operating temperature range (grade 0) Features • 32-bit Arm®* Cortex®-M3 core • 64 KB flash • 6 KB RAM • On-chip OSC and PLL for clock generation • MOSFET driver including charge pump • 1 LIN 2.2 transceiver • High-speed operational amplifier for motor current sensing via shunt • Single power supply from 5.5 V to 28 V • Temperature range Tj = -40°C to +175°C Potential applications • Wiper • Auxiliary pumps • Fans • Window lift • Sunroof • Tailgate Product validation Qualified for automotive applications. Product validation according to AEC-Q100/101.
