TLE9560-3QX - DC Motor System IC

Name: TLE9560-3QX
SKU: TLE9560-3QX-1578784

Infineon

The TLE9560-3QX by Infineon is a DC Motor System IC. Below is the official datasheet preview.

Datasheet Details

Part number	TLE9560-3QX
Manufacturer	Infineon
File Size	2.78 MB
Description	DC Motor System IC
Datasheet	TLE9560-3QX-Infineon.pdf

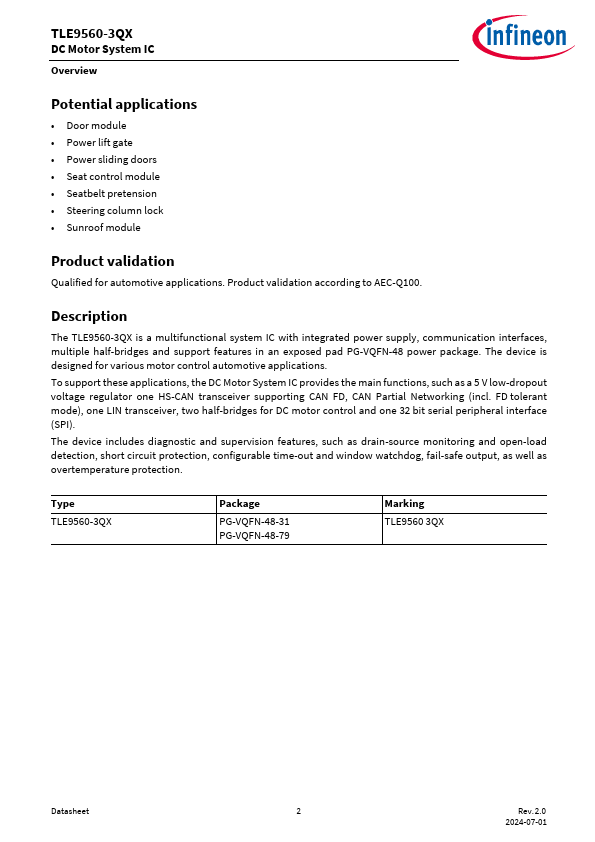

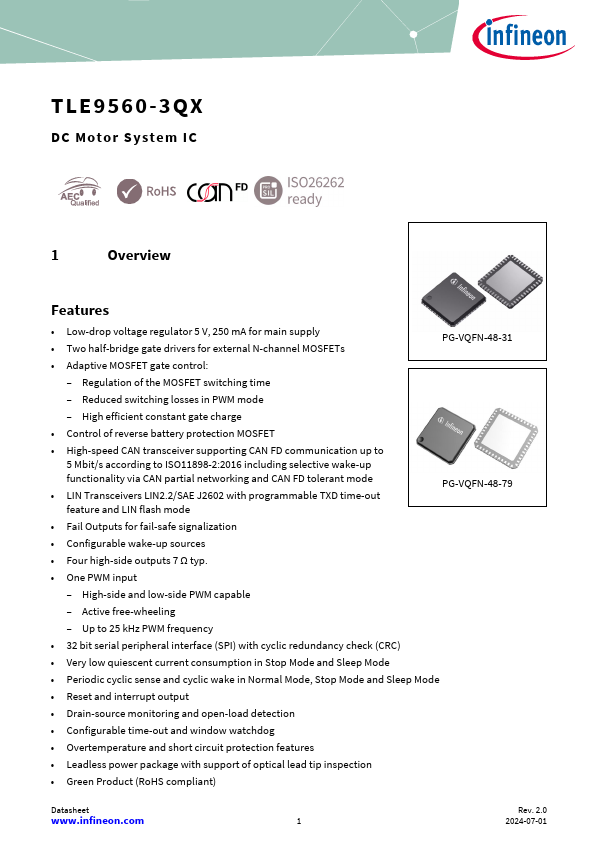

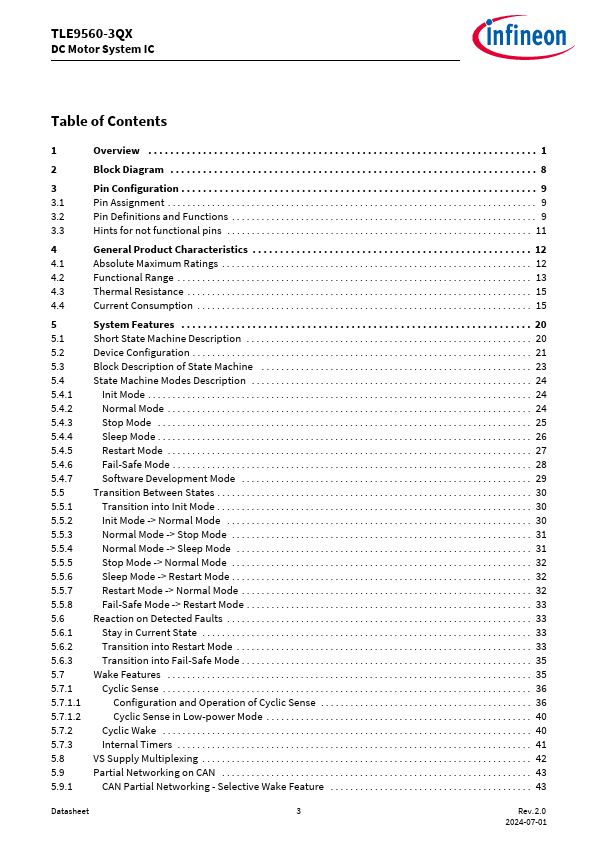

Additional preview pages of the TLE9560-3QX datasheet.

The TLE9560-3QX is a multifunctional system IC with integrated power supply, communication interfaces, multiple half-bridges and support

Low-drop voltage regulator 5 V, 250 mA for main supply.
Two half-bridge gate drivers for external N-channel MOSFETs PG-VQFN-48-31.
Adaptive MOSFET gate control:.
Regulation of the MOSFET switching time.
Reduced switching losses in PWM mode.
High efficient constant gate charge.
Control of reverse battery protection MOSFET.
High-speed CAN transceiver supporting CAN FD communication up to 5 Mbit/s according to ISO11898.
