TLE9273QXV33 - High-End System Basis Chip

TLE9273QXV33 Description

OPTIREG™ SBC TLE9273QXV33 High-End System Basis Chip Family 1 Overview .
The TLE9273QXV33 is a monolithic integrated circuit in an exposed pad PG-VQFN-48 (7 mm × 7 mm) leadless package with Lead Tip Inspection (LTI) feature.

TLE9273QXV33 Features

* Very low quiescent current consumption in SBC Stop and Sleep mode
* SMPS 750 mA (DC/DC buck) voltage regulator 3.3 V to supply high current load with high efficiency
* DC/DC boost converter for low battery supply voltage
* Low-drop voltage regulator 5 V/100 mA, prot

TLE9273QXV33 Applications

* Revision 1.3, 2012-05-04
* One universal high-voltage wake input for voltage level monitoring
* Configurable wake-up sources including periodic cyclic wake in SBC Normal and Stop mode
* Configurable timeout and window watchdog and reset output
* Fail-safe input to mo

📥 Download Datasheet

Preview of TLE9273QXV33 PDF

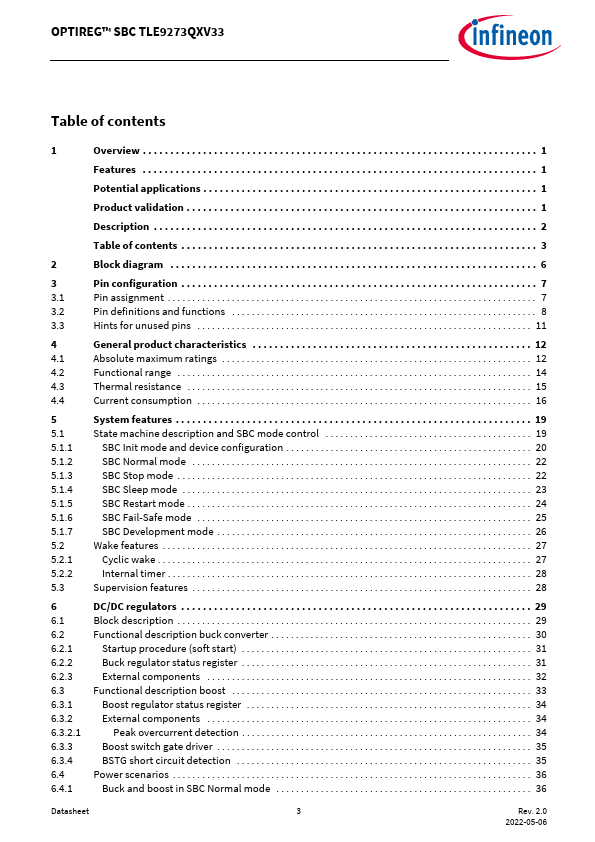

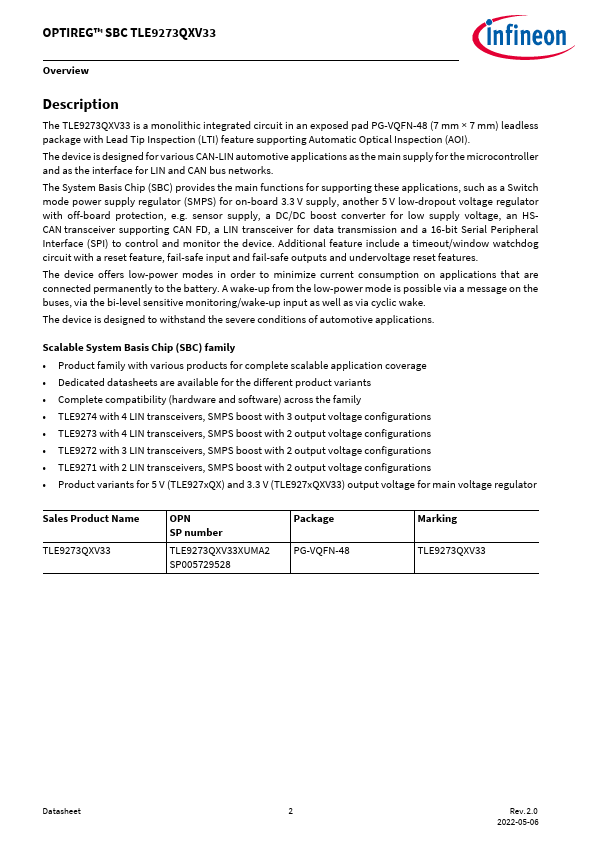

datasheet Preview Page 2 datasheet Preview Page 3
