TLE9263-3BQXV33 - Mid-Range+ System Basis Chip

Infineon

📥 Download Datasheet

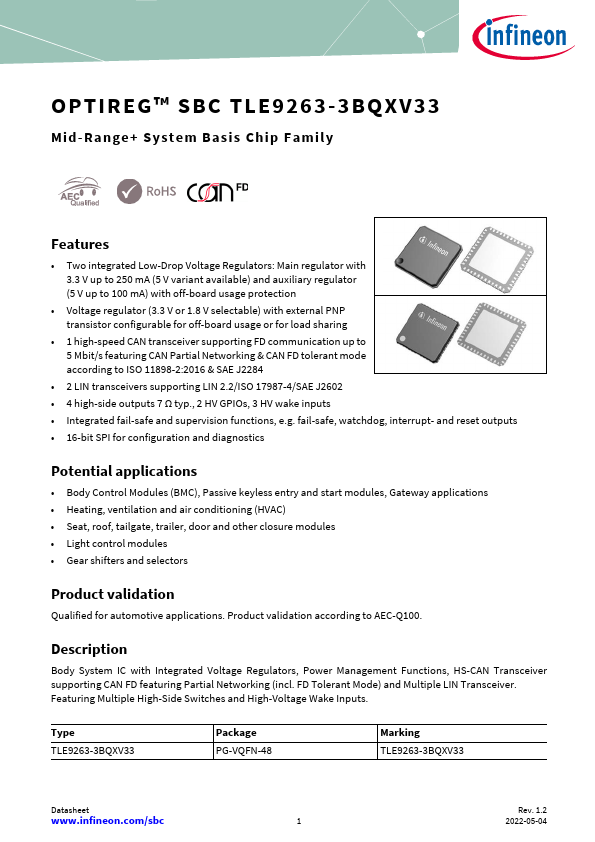

TLE9263-3BQXV33 Datasheet Preview — Preview of TLE9263-3BQXV33 PDF

Datasheet Details

Part number: TLE9263-3BQXV33
Manufacturer: Infineon ↗
File Size: 2.31 MB
Datasheet: TLE9263-3BQXV33-Infineon.pdf
Description: Mid-Range+ System Basis Chip

TLE9263-3BQXV33 Product details

Description

Body System IC with Integrated Voltage Regulators, Power Management Functions, HS-CAN Transceiver supporting CAN FD featuring Partial Networking (incl.

Features

Two integrated Low-Drop Voltage Regulators: Main regulator with 3.3 V up to 250 mA (5 V variant available) and auxiliary regulator (5 V up to 100 mA) with off-board usage protection.
Voltage regulator (3.3 V or 1.8 V selectable) with external PNP transistor configurable for off-board usage or for load sharing.
1 high-speed CAN transceiver supporting FD communication up to 5 Mbit/s featuring CAN Partial Networking & CAN FD tolerant mode according to ISO 11898-2:2016 &.
