TLE9262-3BQX - Mid-Range+ SBC

TLE9262-3BQX Description

OPTIREG™ SBC TLE9262-3BQX Mid-Range+ System Basis Chip Family .
Body System IC with Integrated Voltage Regulators, Power Management Functions, HS-CAN Transceiver supporting CAN FD featuring Partial Networking (incl.

TLE9262-3BQX Features

* Two integrated Low-Drop Voltage Regulators: Main regulator with 5 V up to 250 mA (3.3 V variant available) and auxiliary regulator (5 V up to 100 mA) with off-board usage protection
* Voltage regulator (5 V or 3.3 V selectable) with external PNP transistor configurable for off-boar

TLE9262-3BQX Applications

* Body Control Modules (BMC), Passive keyless entry and start modules, Gateway applications
* Heating, ventilation and air conditioning (HVAC)
* Seat, roof, tailgate, trailer, door and other closure modules
* Light control modules
* Gear shifters and selectors

📥 Download Datasheet

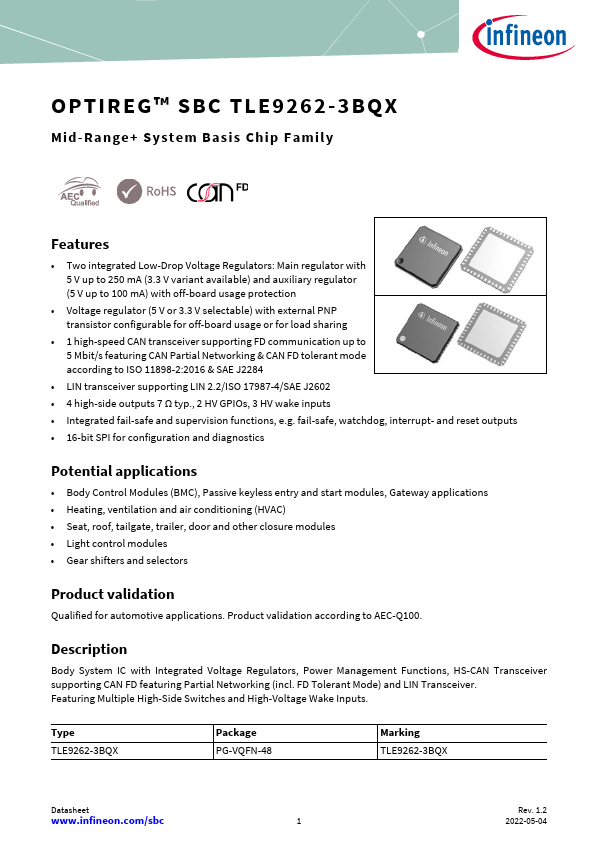

Preview of TLE9262-3BQX PDF

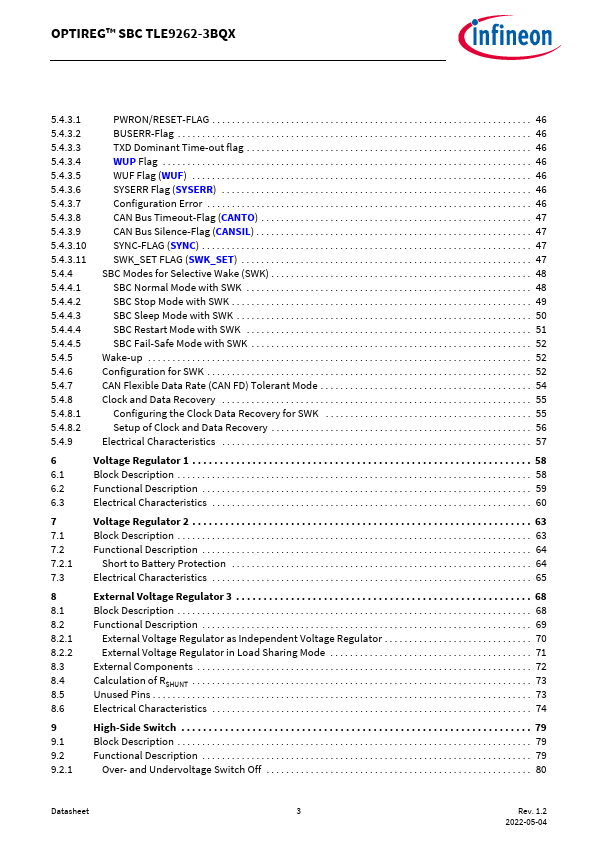

datasheet Preview Page 2 datasheet Preview Page 3
