TLE9185QX - BLDC Driver

Name: TLE9185QX
SKU: TLE9185QX-1578574

Infineon

The TLE9185QX by Infineon is a BLDC Driver. Below is the official datasheet preview.

Datasheet Details

Part number	TLE9185QX
Manufacturer	Infineon
File Size	1.98 MB
Description	BLDC Driver
Datasheet	TLE9185QX-Infineon.pdf

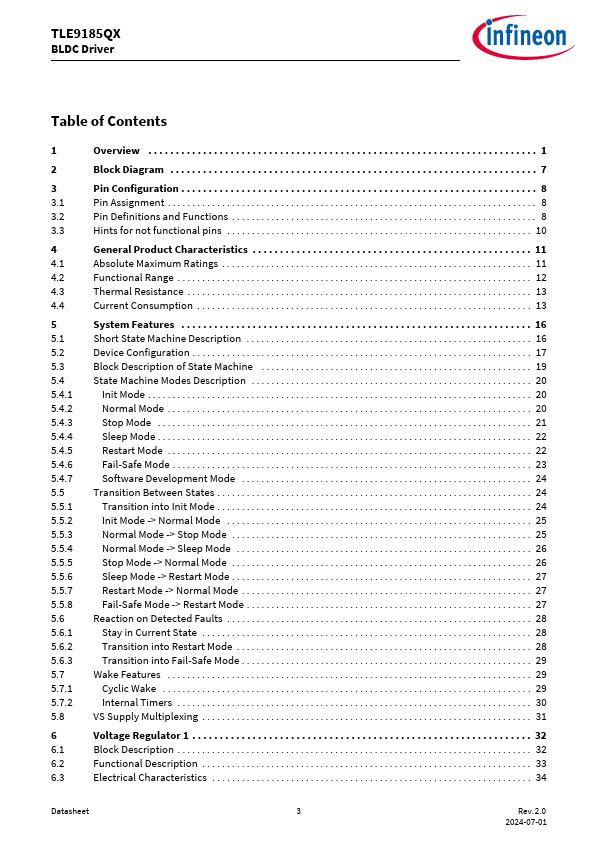

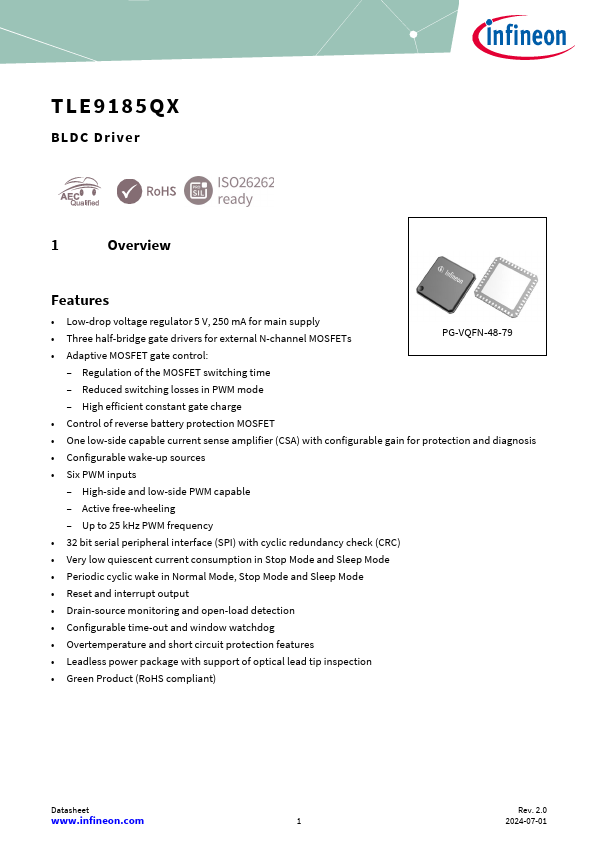

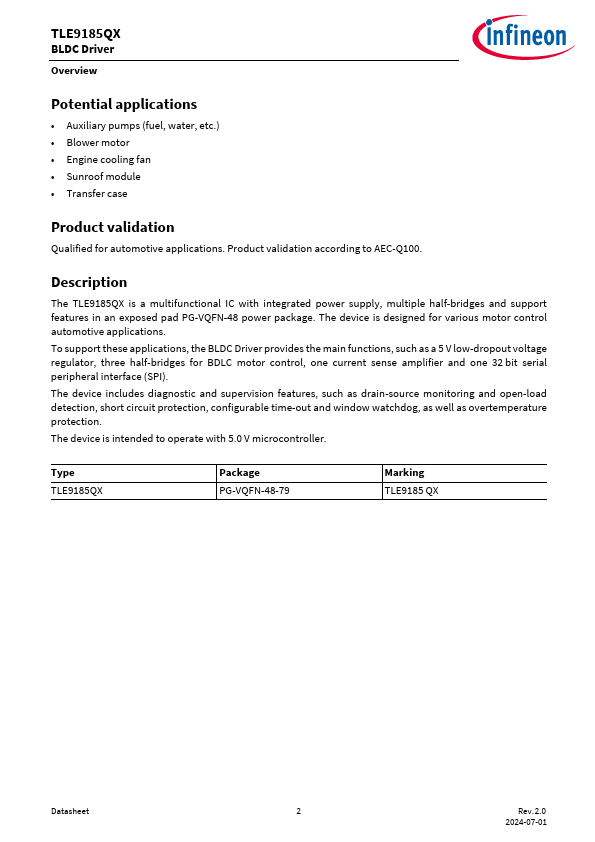

Additional preview pages of the TLE9185QX datasheet.

The TLE9185QX is a multifunctional IC with integrated power supply, multiple half-bridges and support

Low-drop voltage regulator 5 V, 250 mA for main supply.
Three half-bridge gate drivers for external N-channel MOSFETs PG-VQFN-48-79.
Adaptive MOSFET gate control:.
Regulation of the MOSFET switching time.
Reduced switching losses in PWM mode.
High efficient constant gate charge.
Control of reverse battery protection MOSFET.
One low-side capable current sense amplifier (CSA) with configurable gain for protection and.
