TLE8082ES - Small engine management IC

TLE8082ES Description

TLE8082ES Small engine management IC .
The TLE8082ES is a companion IC to TLE8080-xEM or TLE8088EM that includes enhanced functions and features to support OBDII-compliant EURO5/ BHARATVI 2.

TLE8082ES Features

* Power supplies - Voltage pre-regulator with external FET - 5 V sensor supply (tracking 5 V supply input) - 5 V communication supply (tracking 5 V supply input)
* Permanent supply feature - dedicated KEY input - After-run functionality
* 4 low side drivers for inductive load

TLE8082ES Applications

* All automotive applications, in particular
* Motorcycles, 2- and 3-wheelers and scooters
* Watercraft, marines and jet-skis

📥 Download Datasheet

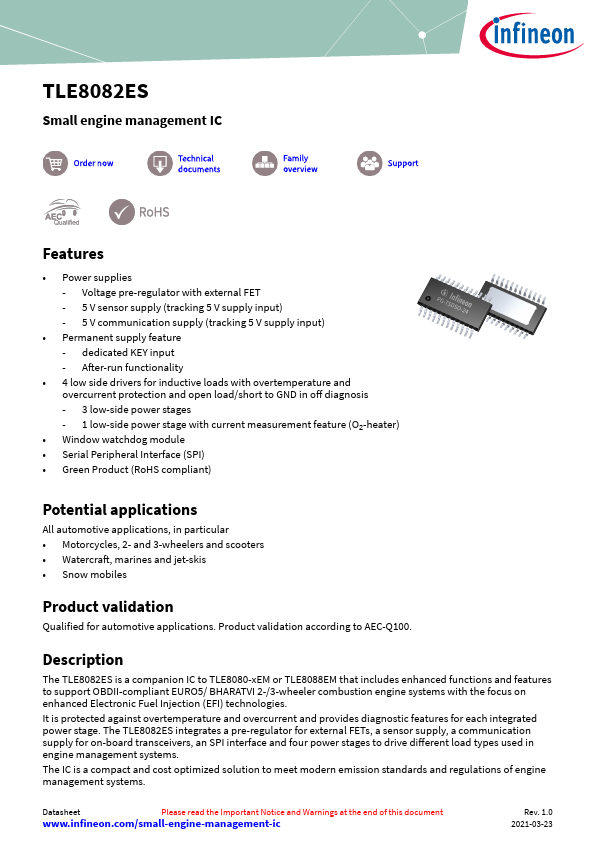

Preview of TLE8082ES PDF

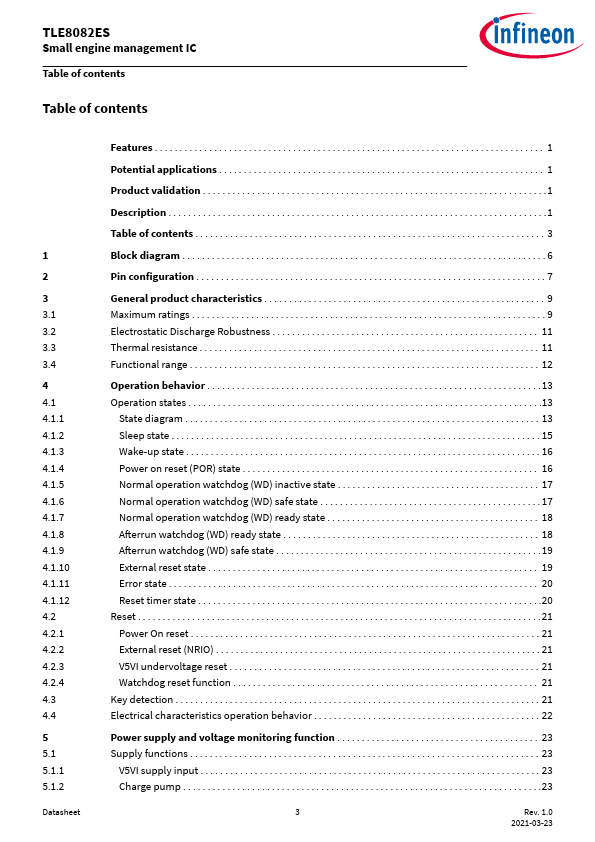

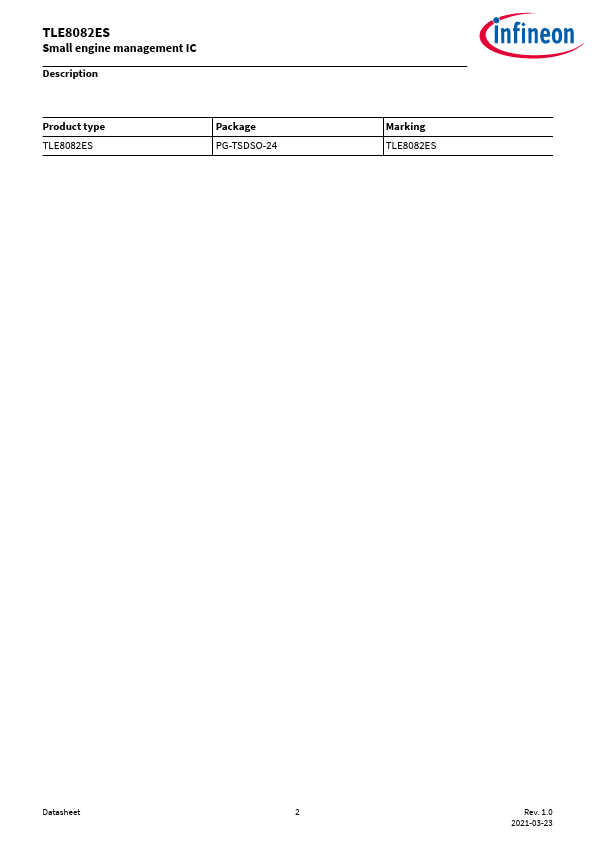

datasheet Preview Page 2 datasheet Preview Page 3
