TLE75004-EPD - SPI Driver

Infineon

📥 Download Datasheet

TLE75004-EPD Datasheet Preview — Preview of TLE75004-EPD PDF

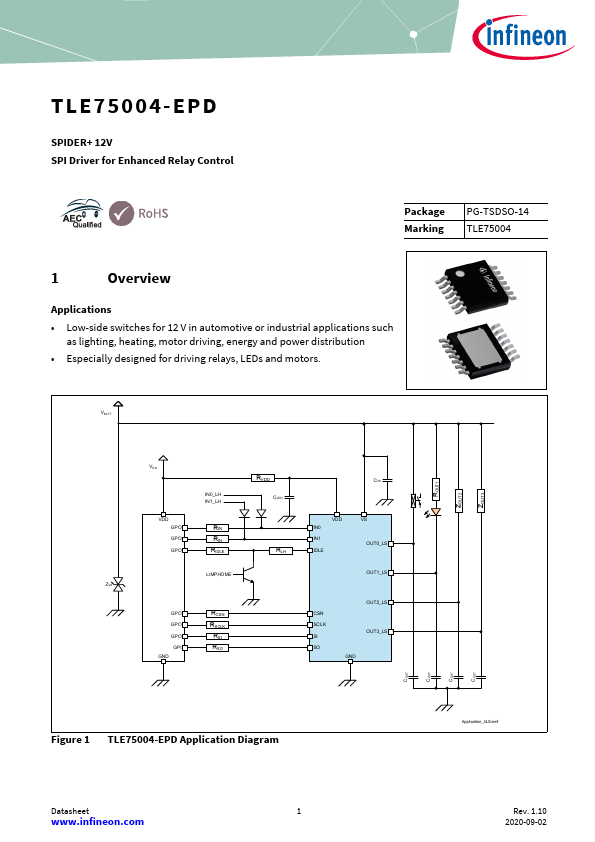

datasheet Preview Page 2

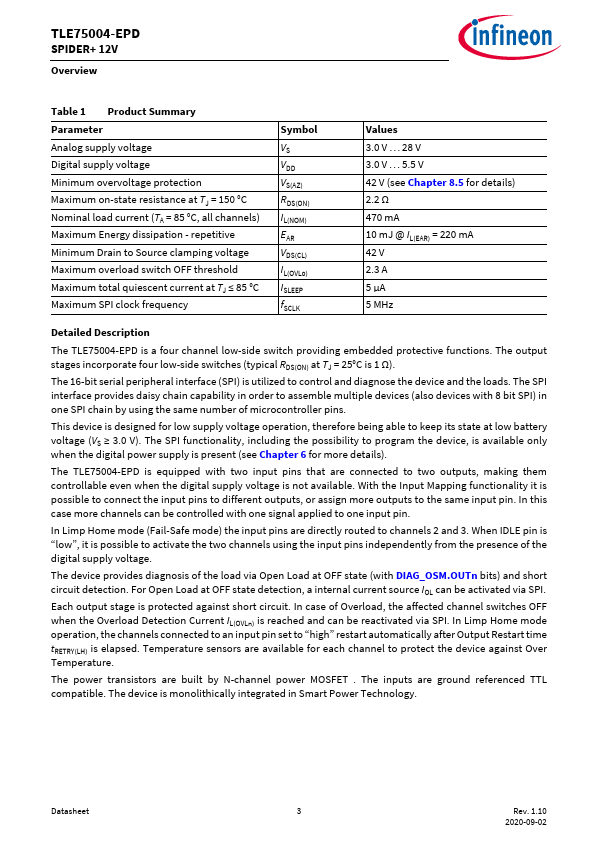

datasheet Preview Page 3

Datasheet Details

Part number	TLE75004-EPD
Manufacturer	Infineon ↗
File Size	794.90 KB
Description	SPI Driver
Datasheet	TLE75004-EPD-Infineon.pdf

TLE75004-EPD Product details

Description

The TLE75004-EPD is a four channel low-side power switch in PG-TSDSO-14 package providing embedded protective functions.

Features

16-bit serial peripheral interface for control and diagnosis.
Daisy Chain capability SPI also compatible with 8-bit SPI devices.
2 CMOS compatible parallel input pins with Input Mapping functionality.
Cranking capability down to VS = 3.0 V (supports LV124).
Digital supply voltage range compatible with 3.3 V and 5 V microcontrollers.
Very low quiescent current (with usage of IDLE pin).
Limp Home mode (with usage of IDLE and IN pins).
