TLE4971 high precision coreless current sensor

TLE4971 Description

TLE4971 high precision coreless current sensor for automotive applications in 8x8mm SMD package .
TLE4971 is a high precision miniature coreless magnetic current sensor for AC and DC measurements with analog interface and two fast over-current dete.

TLE4971 Features

* & Benefits
* Integrated current rail with typical 220µΩ insertion resistance enables ultra-low power loss
* Less than 1nH parasitic inductance
* Smallest form factor, 8x8mm SMD, for easy integration and board area saving
* High accurate, scalable, DC & AC current sens

📥 Download Datasheet

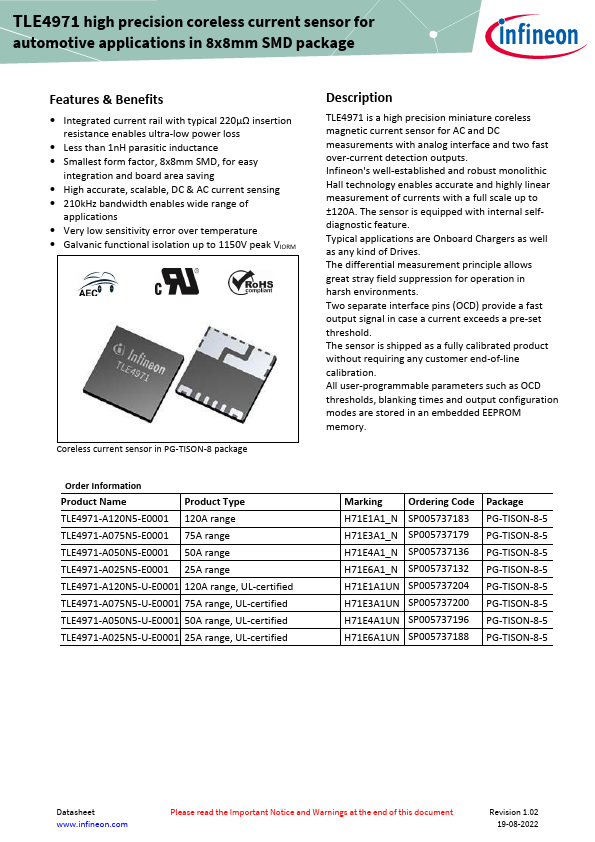

Preview of TLE4971 PDF

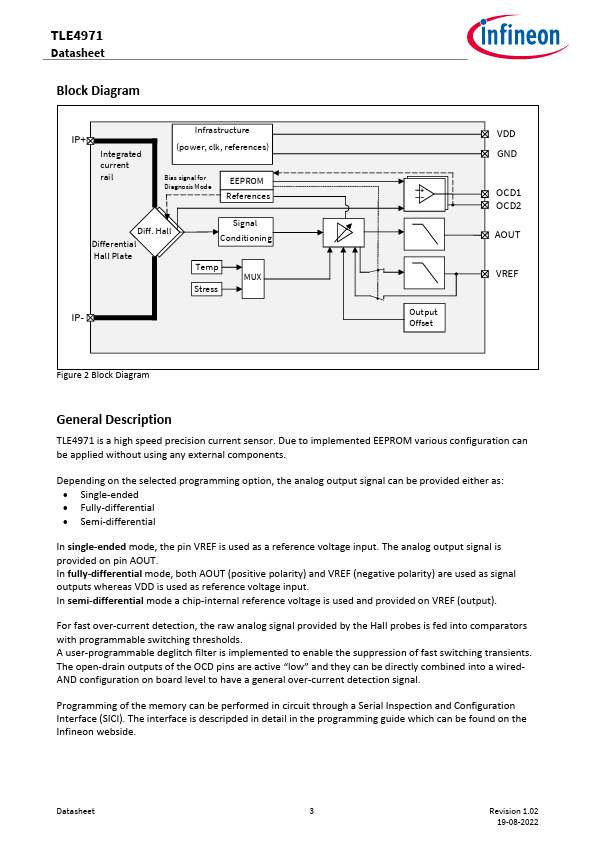

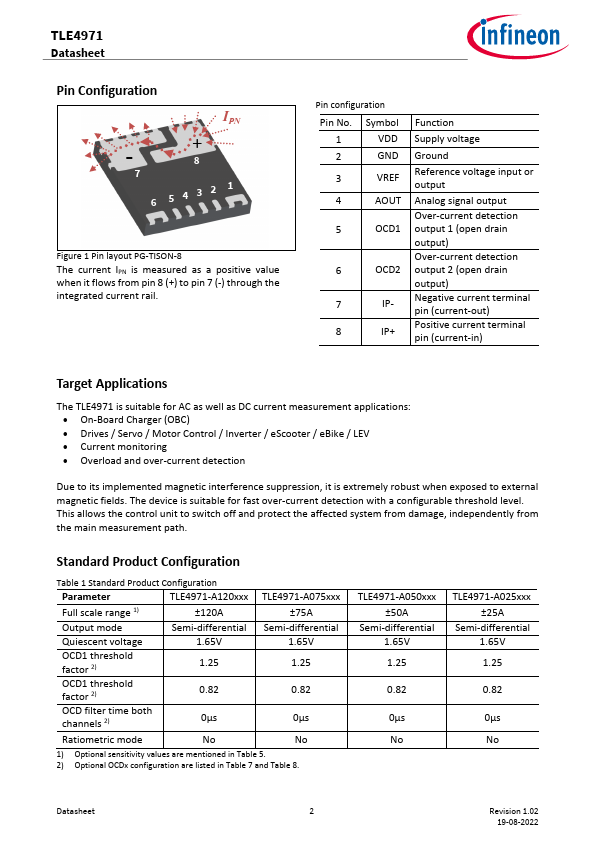

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TLE4971
Manufacturer
Infineon ↗
File Size
734.30 KB
Datasheet
TLE4971-Infineon.pdf
Description
high precision coreless current sensor
