TLE4476D - Dual low-drop voltage regulator

Infineon

TLE4476D Datasheet Preview — Preview of TLE4476D PDF

Datasheet Details

Part number	TLE4476D
Manufacturer	Infineon ↗
File Size	457.73 KB
Description	Dual low-drop voltage regulator
Datasheet	TLE4476D-Infineon.pdf

TLE4476D Product details

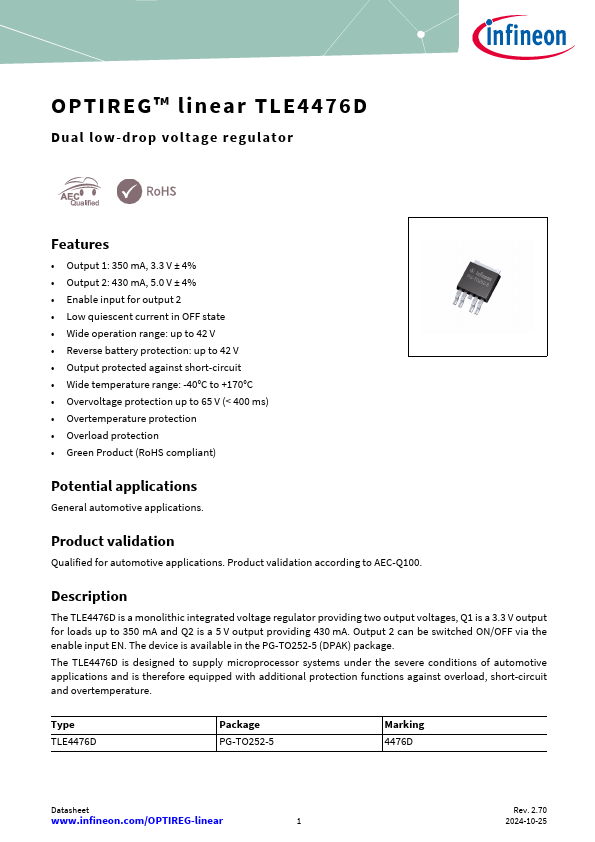

Description

The TLE4476D is a monolithic integrated voltage regulator providing two output voltages, Q1 is a 3.3 V output for loads up to 350 mA and Q2 is a 5 V output providing 430 mA.

Features

Output 1: 350 mA, 3.3 V ± 4%.
Output 2: 430 mA, 5.0 V ± 4%.
Enable input for output 2.
Low quiescent current in OFF state.
Wide operation range: up to 42 V.
Reverse battery protection: up to 42 V.
Output protected against short-circuit.
Wide temperature range: -40°C to +170°C.
Overvoltage protection up to 65 V (< 400 ms).
Overtemperature protection.
Overload protection.
Green Product (RoH.
