TLD7002-16ES - Multi-channel LED driver

Infineon

Datasheet Details

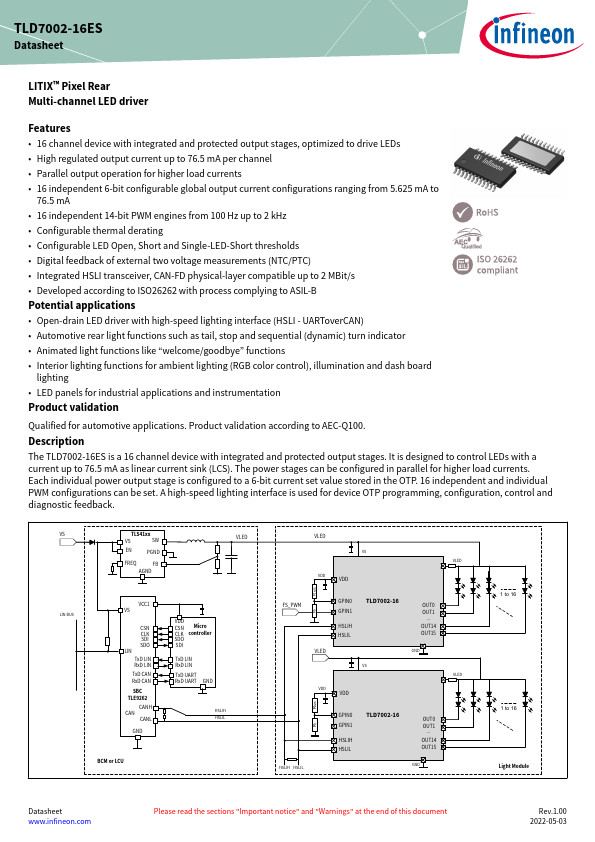

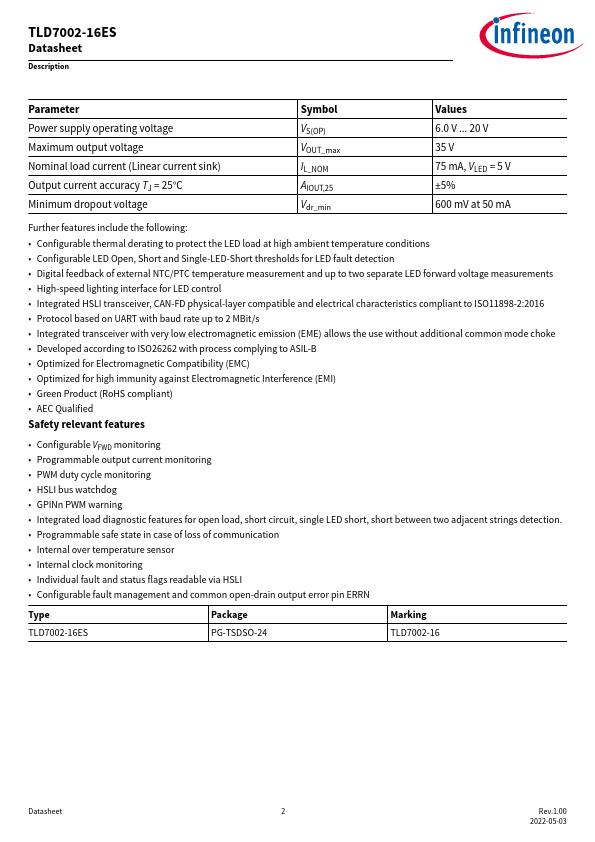

The TLD7002-16ES is a 16 channel device with integrated and protected output stages.

16 channel device with integrated and protected output stages, optimized to drive LEDs.
High regulated output current up to 76.5 mA per channel.
Parallel output operation for higher load currents.
16 independent 6-bit configurable global output current configurations ranging from 5.625 mA to 76.5 mA.
16 independent 14-bit PWM engines from 100 Hz up to 2 kHz.
Configurable thermal derating.
Configurable LED Open, Short and Single-LED-.
