TDA21535 - low profile DC-DC converters

Infineon

The TDA21535 by Infineon is a low profile DC-DC converters. Below is the official datasheet preview.

📥 Download Datasheet

Official preview page of the TDA21535 low profile DC-DC converters datasheet (Infineon).

Datasheet Details

Part number	TDA21535
Manufacturer	Infineon
File Size	0.97 MB
Description	low profile DC-DC converters
Datasheet	TDA21535-Infineon.pdf

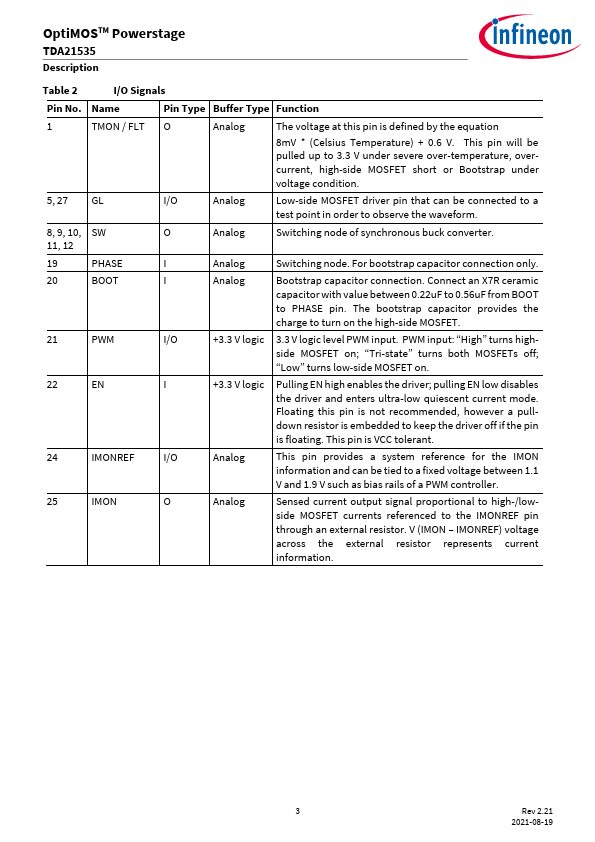

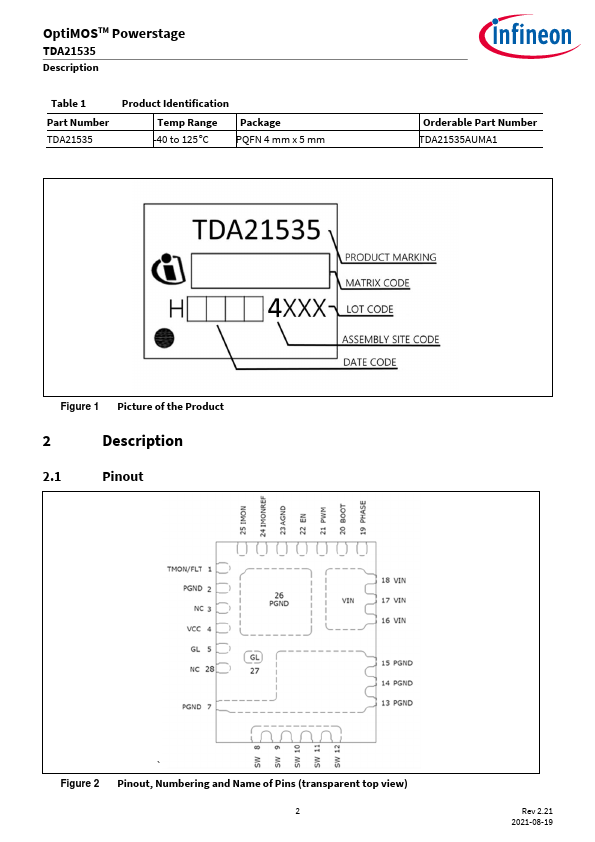

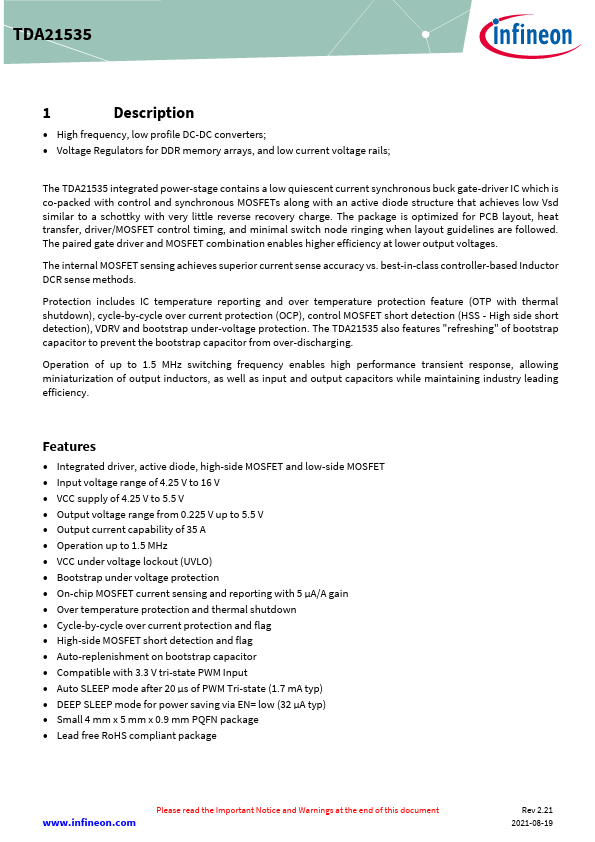

Additional preview pages of the TDA21535 datasheet.

TDA21535 Product details

Description

High frequency, low profile DC-DC converters; Voltage Regulators for DDR memory arrays, and low current voltage rails; The TDA21535 integrated power-stage contains a low quiescent current synchronous buck gate-driver IC which is co-packed with control and synchronous MOSFETs along with an active diode structure that achieves low Vsd similar to a schottky with very little reverse recovery charge.The package is optimized for PCB layout, heat transfer, driver/MOSFET control t

Features

"refreshing" of bootstrap capacitor to prevent the bootstrap capacitor from over-discharging. Operation of up to 1.5 MHz switching frequency enables high performance transient response, allowing miniaturization of output inductors, as well as input and output capacitors while maintaining industry leading efficiency. Features.
Integrated driver, active diode, high-side MOSFET and low-side MOSFET.
Input voltage range of 4.25 V to 16 V.
VCC supply of 4.25 V to 5.5 V.
