PSC3P2EDACQ1, PSC3P2EDLGQ1 - 32-bit MCU+FPU+DSP

Infineon

📥 Download Datasheet

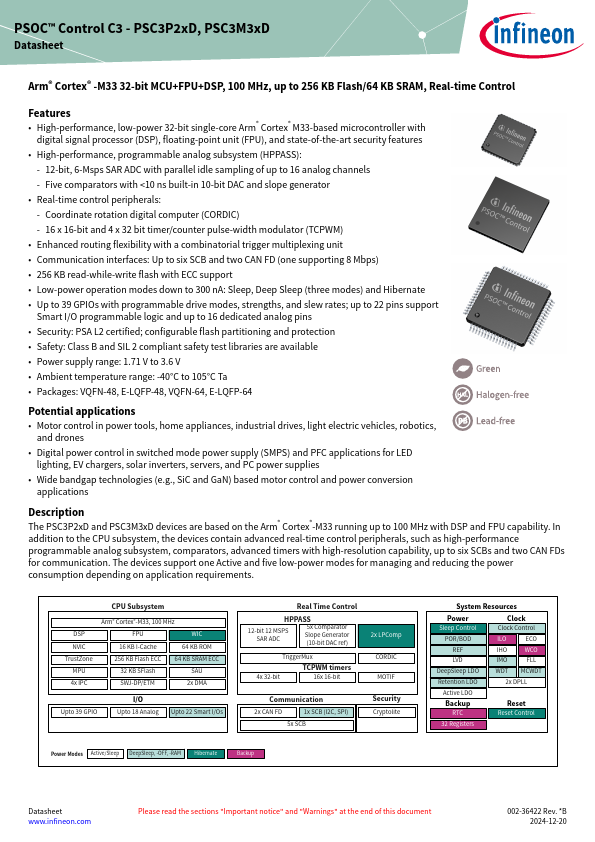

PSC3P2EDACQ1 Datasheet Preview — This datasheet PDF includes multiple part numbers: PSC3P2EDACQ1, PSC3P2EDLGQ1. Please refer to the document for exact specifications by model.

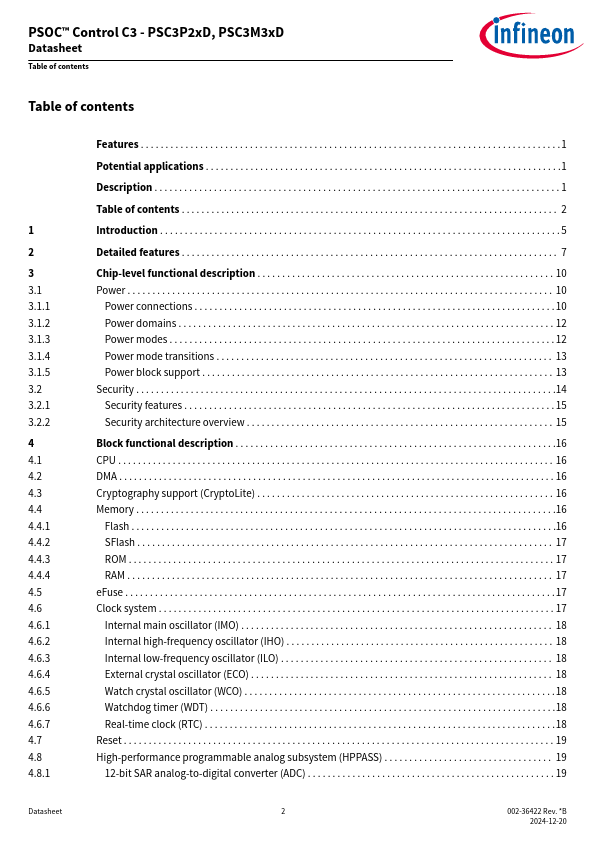

datasheet Preview Page 2

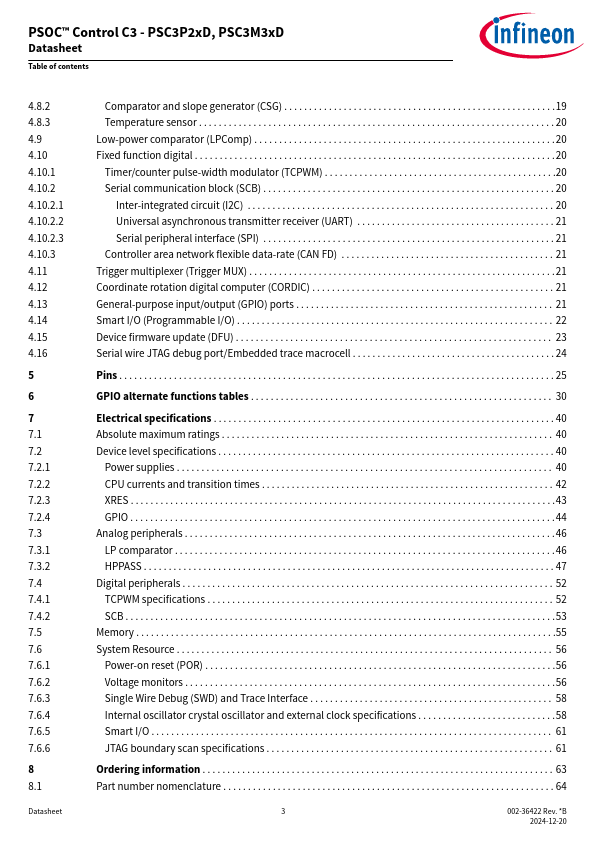

datasheet Preview Page 3

Datasheet Details

Part number	PSC3P2EDACQ1, PSC3P2EDLGQ1
Manufacturer	Infineon ↗
File Size	2.84 MB
Description	32-bit MCU+FPU+DSP
Datasheet	PSC3P2EDLGQ1-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: PSC3P2EDACQ1, PSC3P2EDLGQ1. Please refer to the document for exact specifications by model.

PSC3P2EDACQ1 Product details

Description

The PSC3P2xD and PSC3M3xD devices are based on the Arm® Cortex®-M33 running up to 100 MHz with DSP and FPU capability.

Features

High-performance, low-power 32-bit single-core Arm® Cortex® M33-based microcontroller with digital signal processor (DSP), floating-point unit (FPU), and state-of-the-art security features.
High-performance, programmable analog subsystem (HPPASS): - 12-bit, 6-Msps SAR ADC with parallel idle sampling of up to 16 analog channels - Five comparators with.
