ISO1H811G, Galvanic Isolated 8 Channel High-Side Switch

for repetitive short circuit corrected Page 9 Page 9 Chapter 3.4 Vbb Monitoring included in common diagnostic output description Page 14 Page 15 Page 14 Chapter 4.4 VISO changed to correct value ΔVISO = 500V Page 15 Chapter 4.5 Footnotes corrected Page 16 Page 17 Page 16 Chapter 4.8 Timing par

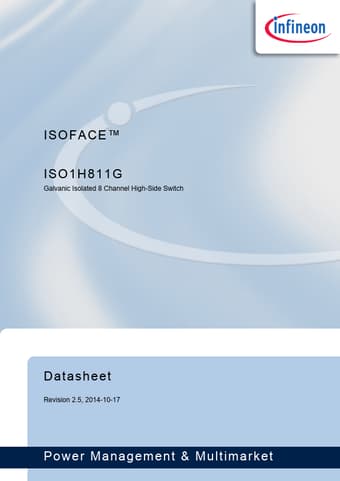

ISOFACE™ ISO1H811G Galvanic Isolated 8 Channel High-Side Switch Datasheet Revision 2.5, 2014-10-17 Power Management & Multimarket Edition 2014-10-17 Published by Infineon Technologies AG 81726 Munich, Germany © 2014 Infineon Technologies AG All Rights Reserved.

Legal Disclaimer The information given in this document shall in no event be regarded as a guarantee of conditions or characteristics.

With respect to any examples or hints given herein, any typical values stated herein and/or any inform

ISO1H811G Features

* Typical Application

* Interface 3.3/5V CMOS operation compatible

* Parallel interface

* Direct control mode

* High common mode transient immunity

* Short circuit protection

* Maximum current internally limited

* Overload protection
