ISK057N04LM6 - MOSFET

Description

.

.

.

.

Features

  • N-channel, logic level.
  • Lowest on-resistance RDS(on) in a 2x2 package.
  • Superior thermal resistance for a 2x2 package.
  • 100% avalanche tested.
  • Pb-free lead plating; RoHS compliant.
  • Halogen-free according to IEC61249-2-21.
  • Optimized for highest performance and power density Product validation Fully qualified according to JEDEC for Industrial.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ISK0503A DC-DC Converter XP Power
ISK0505A DC-DC Converter XP Power
ISK1205A DC-DC Converter XP Power
ISK1212A DC-DC Converter XP Power
ISK2405A DC-DC Converter XP Power

Other Datasheets by Infineon

Part Number Description
ISK018NE1LM7 MOSFET
ISK024NE2LM5 MOSFET
ISK036N03LM5 MOSFET

Full PDF Text Transcription

Click to expand full text

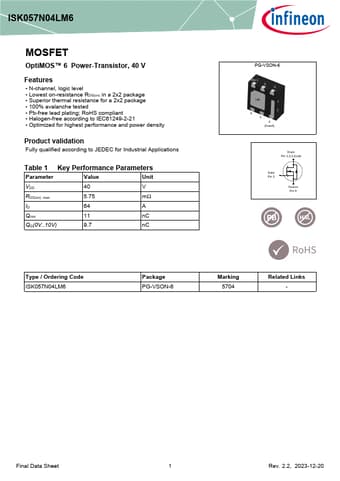

ISK057N04LM6 MOSFET OptiMOSª6Power-Transistor,40V Features •N-channel,logiclevel •Loweston-resistanceRDS(on)ina2x2package •Superiorthermalresistancefora2x2package •100%avalanchetested •Pb-freeleadplating;RoHScompliant •Halogen-freeaccordingtoIEC61249-2-21 •Optimizedforhighestperformanceandpowerdensity Productvalidation FullyqualifiedaccordingtoJEDECforIndustrialApplications Table1KeyPerformanceParameters Parameter Value Unit VDS 40 V RDS(on),max 5.75 mΩ ID 64 A Qoss 11 nC QG(0V..10V) 9.7 nC PG-VSON-6 Pin 1 2 3 tab 6 5 4 (fused) Drain Pin 1,2,5,6,tab Gate Pin 3 Source Pin 4 Type/OrderingCode ISK057N04LM6 Package PG-VSON-6 Marking 5704 RelatedLinks - Final Data Sheet 1 Rev.2.
