IRFR3710Z, IRFR3710ZPbF-1 Power MOSFET

IRFR3710Z Description

IRFR3710ZPbF .
This HEXFET® Power MOSFET utilizes the latest processing techniques to achieve extremely low on-resistance per silicon area.

IRFR3710Z Features

* Advanced Process Technology
* Ultra Low On-Resistance
* 175°C Operating Temperature
* Fast Switching
* Repetitive Avalanche Allowed up to Tjmax

IRFR3710Z Applications

* S G D- Pak IRFR3710ZPbF Refer to page 9 for package outline G Gate D Drain S Source Base part number IRFR3710ZPbF Package Type D-Pak Standard Pack Form Tape and Reel Left Tape and Reel Quantity 3000 2000 Orderable Part Number IRFR3710ZTRLPbF IRFR3710ZTRPbF Absolute Maximum Ratings Symbol

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IRFR3710Z, IRFR3710ZPbF-1. Please refer to the document for exact specifications by model.

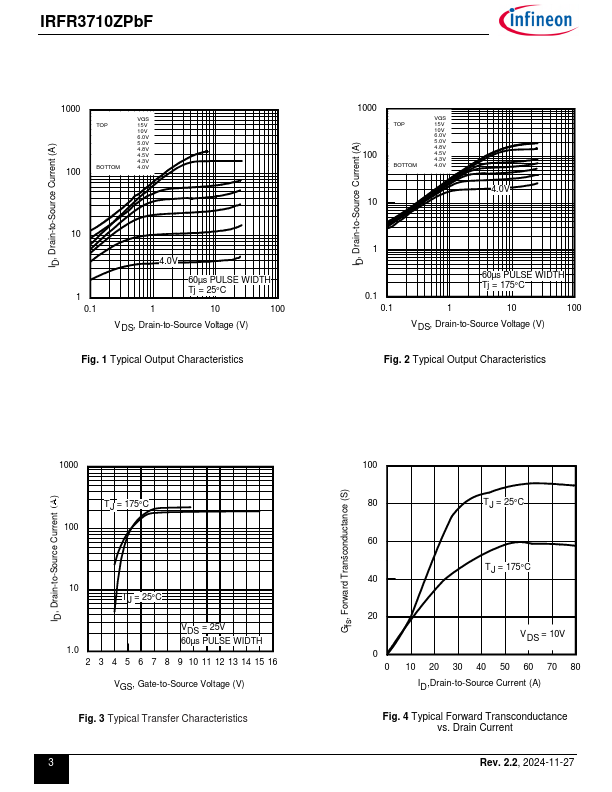

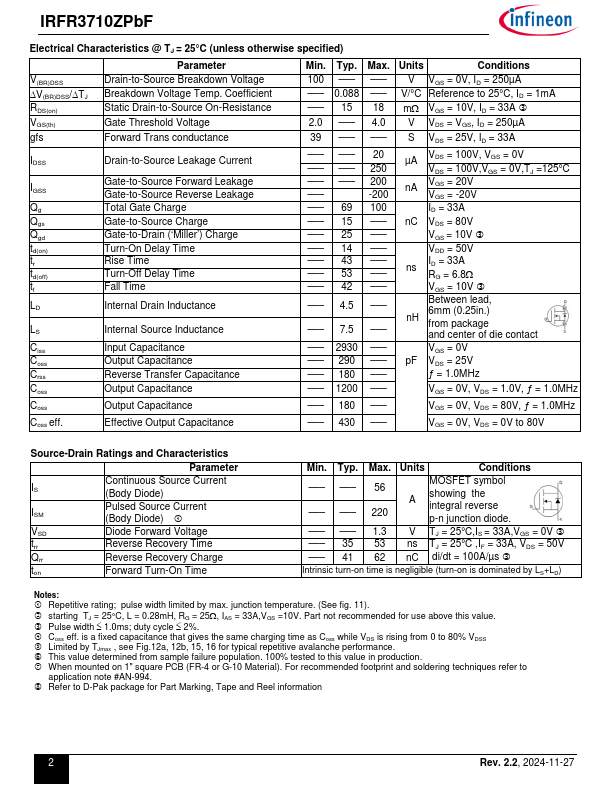

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRFR3710Z, IRFR3710ZPbF-1
Manufacturer
Infineon ↗
File Size
449.49 KB
Datasheet
IRFR3710ZPbF-1-Infineon.pdf
Description
Power MOSFET
Note
This datasheet PDF includes multiple part numbers: IRFR3710Z, IRFR3710ZPbF-1.
Please refer to the document for exact specifications by model.
