IPW60R099CPA Power Transistor

Infineon

IPW60R099CPA Description

CoolMOSTM Power Transistor .

IPW60R099CPA Features

* Lowest figure-of-merit RON x Qg
* Ultra low gate charge
* Extreme dv/dt rated
* High peak current capability
* Automotive AEC Q101 qualified
* Green package (RoHS compliant) CoolMOS CPA is specially designed for:
* DC/DC converters for Automo

IPW60R099CPA Applications

* Product Summary V DS R DS(on),max Q g,typ IPW60R099CPA 600 V 0.105 Ω 60 nC PG-TO247-3 Type IPW60R099CPA Package PG-TO247-3 Marking 6R099A Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current Pulsed drain current1) ID I D,pulse T C

📥 Download Datasheet

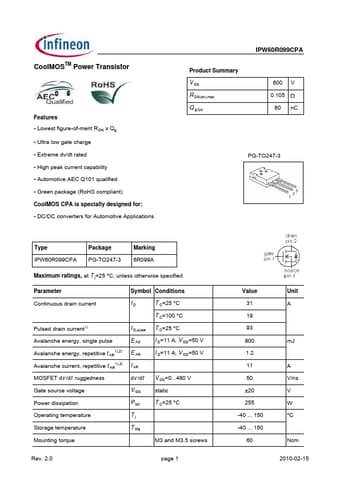

IPW60R099CPA Datasheet Preview — Preview of IPW60R099CPA PDF

Datasheet Details

Part number: IPW60R099CPA
Manufacturer: Infineon ↗
File Size: 378.63 KB
Datasheet: IPW60R099CPA-Infineon.pdf
Description: Power Transistor
