IPTC014N10NM5 - 100V MOSFET

Description

.

.

.

.

Features

  • N-channel.
  • Very low on-resistance RDS(on).
  • Superior thermal resistance.
  • 100% avalanche tested.
  • Pb-free lead plating; RoHS compliant.
  • Halogen-free according to IEC61249-2-21 Product validation Fully qualified according to JEDEC for Industrial.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IPT2601 USB Dedicated Fast-Charging Port Controller FUMAN
IPT2602 USB fast charging port controller ChipSourceTek

Other Datasheets by Infineon

Part Number Description
IPTC014N08NM5 80V MOSFET
IPTC012N08NM5 MOSFET
IPTC015N10NM5 MOSFET
IPTC017N10NM5LF2 100V MOSFET
IPTC007N06NM5 MOSFET

Full PDF Text Transcription

Click to expand full text

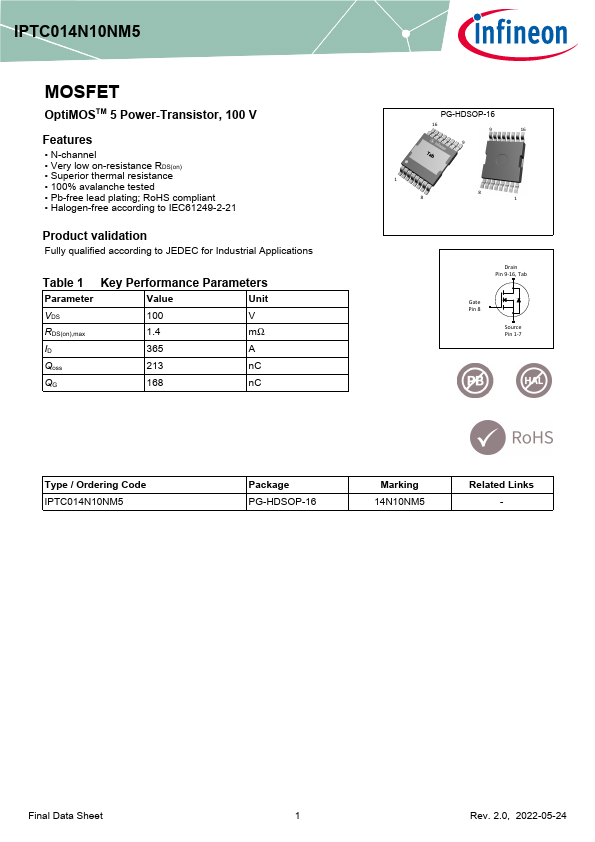

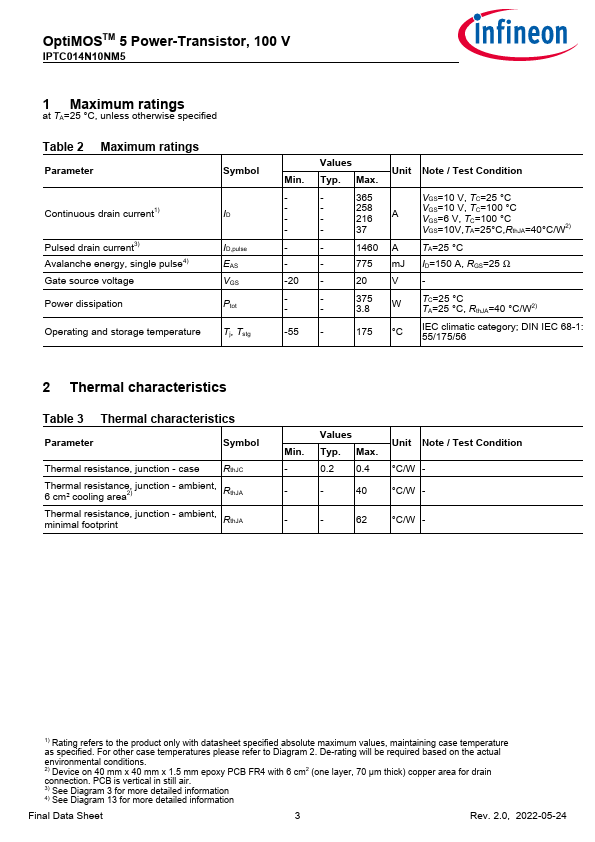

IPTC014N10NM5 MOSFET OptiMOSTM5Power-Transistor,100V Features •N-channel •Verylowon-resistanceRDS(on) •Superiorthermalresistance •100%avalanchetested •Pb-freeleadplating;RoHScompliant •Halogen-freeaccordingtoIEC61249-2-21 Productvalidation FullyqualifiedaccordingtoJEDECforIndustrialApplications Table1KeyPerformanceParameters Parameter Value Unit VDS 100 V RDS(on),max 1.4 mΩ ID 365 A Qoss 213 nC QG 168 nC PG-HDSOP-16 16 9 16 9 1 8 8 1 Drain Pin 9-16, Tab Gate Pin 8 Source Pin 1-7 Type/OrderingCode IPTC014N10NM5 Package PG-HDSOP-16 Marking 14N10NM5 RelatedLinks - Final Data Sheet 1 Rev.2.0,2022-05-24 OptiMOSTM5Power-Transistor,100V IPTC014N10NM5 TableofContents Description . . . . . . . . . . . . . . .
