IPP80N07S4-05 - Power-Transistor

Infineon

📥 Download Datasheet

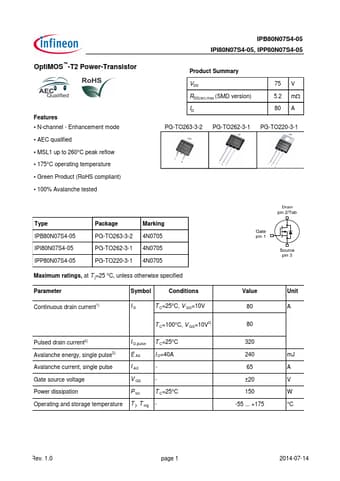

IPP80N07S4-05 Datasheet Preview — Preview of IPP80N07S4-05 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPP80N07S4-05
Manufacturer	Infineon ↗
File Size	412.21 KB
Description	Power-Transistor
Datasheet	IPP80N07S4-05-Infineon.pdf

IPP80N07S4-05 Product details

Features

N-channel - Enhancement mode.
AEC qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB80N07S4-05 IPI80N07S4-05, IPP80N07S4-05 Product Summary VDS RDS(on),max (SMD version) ID 75 V 5.2 mW 80 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB80N07S4-05 IPI80N07S4-05 IPP80N07S4-05 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N0705 4N0705 4N0705 Maximum.
