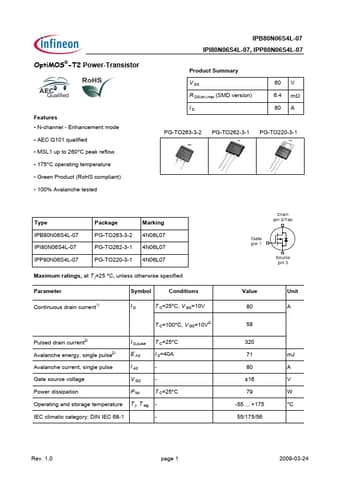

IPP80N06S4L-07 Datasheet Preview — Preview of IPP80N06S4L-07 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPP80N06S4L-07
Manufacturer	Infineon
File Size	166.63 KB
Description	Power-Transistor
Datasheet	IPP80N06S4L-07-Infineon.pdf

IPP80N06S4L-07 Product details

Features

N-channel - Enhancement mode.
AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPB80N06S4L-07 IPI80N06S4L-07, IPP80N06S4L-07 Product Summary V DS R DS(on),max (SMD version) ID 60 V 6.4 mΩ 80 A PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Type IPB80N06S4L-07 IPI80N06S4L-07 IPP80N06S4L-07 Package PG-TO263-3-2 PG-TO262-3-1 PG-TO220-3-1 Marking 4N06L07 4N06L07 4.
