IPLU300N04S4-R7 - Power-Transistor

Features

  • N-channel - Enhancement mode.
  • AEC qualified.
  • MSL1 up to 260°C peak reflow.
  • 175°C operating temperature.
  • Green product (RoHS compliant); 100% lead free.
  • Ultra low Rds(on).
  • 100% Avalanche tested Product Summary VDS RDS(on) ID 40 V 0.76 mW 300 A H-PSOF-8-1 Tab 8 1 Tab 1 8 Drain Tab Type IPLU300N04S4-R7 Package H-PSOF-8-1 Marking 4N04R7 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Co.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IPL10020 Shortform Catalogue ETC
IPL100xx GENERAL-PURPOSE PHOTODIODE Integrated Photomatrix

Other Datasheets by Infineon

Part Number Description
IPLU300N04S4-R8 Power-Transistor
IPLU300N04S4-1R1 Power-Transistor
IPLU250N04S4-1R7 Power-Transistor
IPL60R060CFD7 MOSFET
IPL60R065C7 MOSFET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

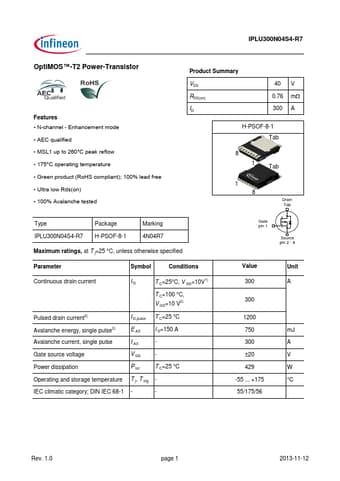

IPLU300N04S4-R7 OptiMOS™-T2 Power-Transistor Features • N-channel - Enhancement mode • AEC qualified • MSL1 up to 260°C peak reflow • 175°C operating temperature • Green product (RoHS compliant); 100% lead free • Ultra low Rds(on) • 100% Avalanche tested Product Summary VDS RDS(on) ID 40 V 0.
