IPL65R190E6 MOSFET

IPL65R190E6 Description

MOSFET Metal Oxide Semiconductor Field Effect Transistor CoolMOS™ ThinkPAK 8x8 650V CoolMOS™ E6 Power Transistor IPL65R190E6 Data Sheet Rev.2.0 Final.
CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle and pioneered by Infineo.

IPL65R190E6 Features

* Reduced board space consumption
* Increased power density
* Short commutation loop
* Smooth switching waveform
* easy to use products
* Extremely low losses due to very low FOM Rdson
* Qg and Eoss
* Pb-free plating, Halogen free
* Q

IPL65R190E6 Applications

* more reliable, more efficient, lighter and cooler. ThinPAK ThinPAK is a new leadless SMD package for HV MOSFETs. The new package has a very small footprint of only 64mm² (vs. 150mm² for the D²PAK) and a very low profile with only 1mm height (vs. 4.4mm for the D²PAK). The significantly smaller packag

📥 Download Datasheet

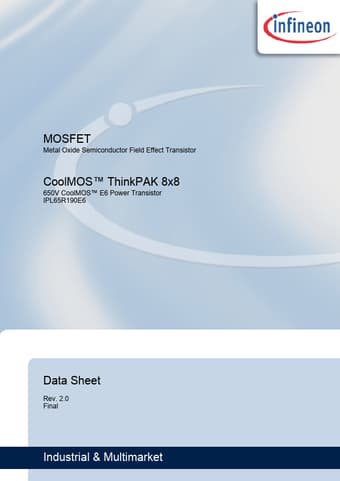

Preview of IPL65R190E6 PDF
datasheet Preview Page 2 datasheet Preview Page 3
