IPD50R520CP Power Transistor

Infineon

IPD50R520CP Description

Type CoolMOSTM Power Transistor Package * Lowest figure of merit RON x Qg * Ultra low gate charge * Extreme dv/dt rated

IPD50R520CP Applications

* Product Summary V DS @Tjmax R DS(on),max Q g,typ IPD50R520CP 550 V 0.520 Ω 13 nC PG-TO252 CoolMOS CP is designed for:
* Hard- & Softswitching SMPS topologies
* DCM PFC for Lamp ballast
* PWM for Lamp Ballast, PDP and LCD TV Type IPD50R520CP Package PG-TO252 Marking 5R5

📥 Download Datasheet

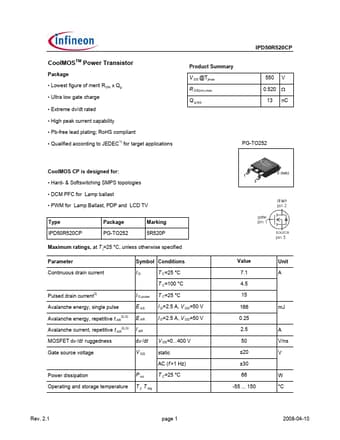

IPD50R520CP Datasheet Preview — Preview of IPD50R520CP PDF

Datasheet Details

Part number: IPD50R520CP
Manufacturer: Infineon ↗
File Size: 298.54 KB
Datasheet: IPD50R520CP-Infineon.pdf
Description: Power Transistor
