IPA040N08NM5S - 80V MOSFET

Infineon

📥 Download Datasheet

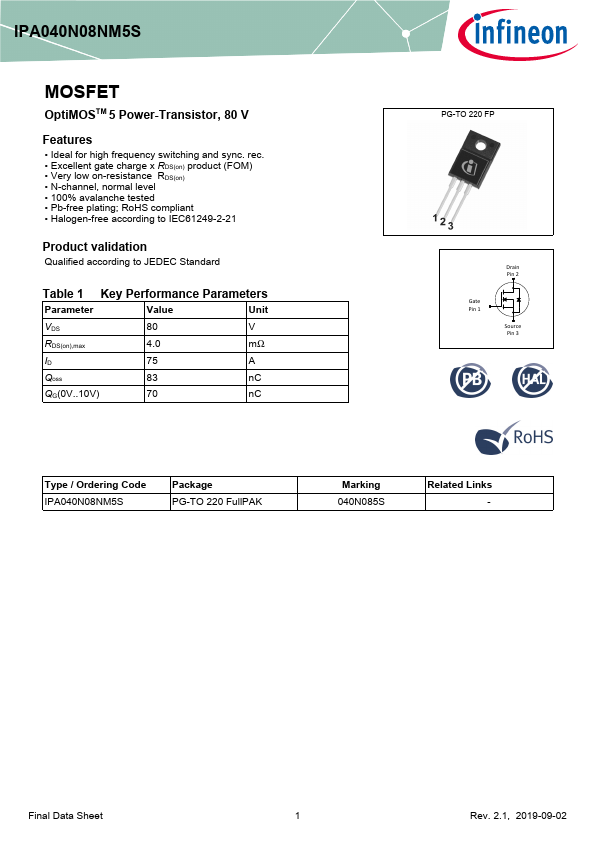

IPA040N08NM5S Datasheet Preview — Preview of IPA040N08NM5S PDF

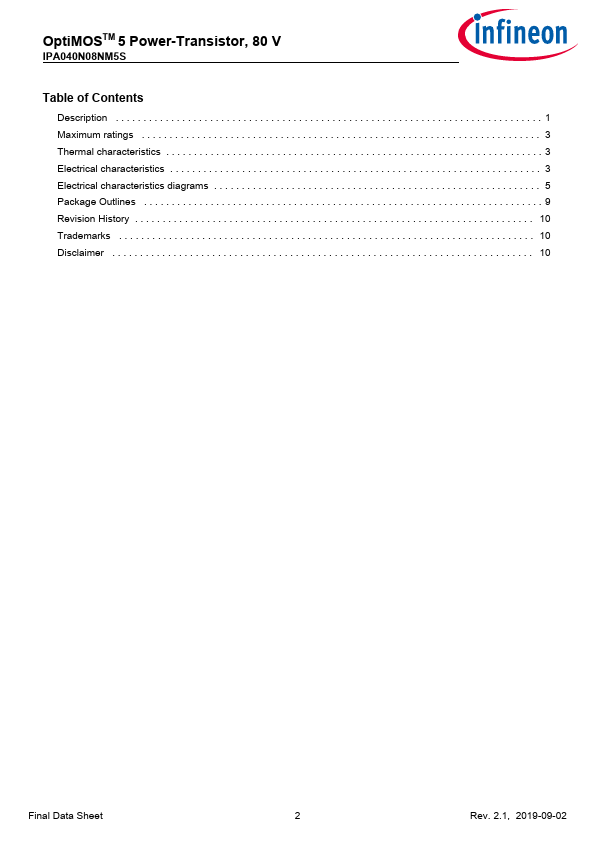

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IPA040N08NM5S
Manufacturer	Infineon
File Size	0.98 MB
Description	80V MOSFET
Datasheet	IPA040N08NM5S-Infineon.pdf

IPA040N08NM5S Product details

Description

. . .

Features

Ideal for high frequency switching and sync. rec.
Excellent gate charge x RDS(on) product (FOM).
Very low on-resistance RDS(on).
N-channel, normal level.
100% avalanche tested.
Pb-free plating; RoHS compliant.
Halogen-free according to IEC61249-2-21 Product validation Qualified according to JEDEC Standard Table 1 Key Performance Parameters Parameter Value Unit VDS 80 V RDS(on),max 4.0 mΩ ID 75 A Qoss 83 nC QG(.
