IMZC120R040M2H - 1200V SiC MOSFET

Description

1 drain 2 source 3 Kelvin sense contact 4

Copyright © Infineon Technologies AG 2021.

All rights reserved.

Features

  • VDSS = 1200 V at Tvj = 25°C.
  • IDDC = 34 A at TC = 100°C.
  • RDS(on) = 40 mΩ at VGS = 18 V, Tvj = 25°C.
  • Very low switching losses.
  • Overload operation up to Tvj = 200°C.
  • Short circuit withstand time 2 µs.
  • Benchmark gate threshold voltage, VGS(th) = 4.2 V.
  • Robust against parasitic turn on, 0 V turn-off gate voltage can be applied.
  • Robust body diode for hard commutation.
  • . XT interconnection technology for best-in-.

📥 Download Datasheet

📁 Similar Datasheet

  • IMZ1A - General purpose transistor (Rohm)
  • IMZ2A - Dual Transistor (Rohm)
  • IMZ2A - DUAL TRANSISTORS (UTC)
  • IMZ4 - General purpose transistor (Rohm)
  • IMZ88 - GENERAL PURPOSE DUAL TRANSISTOR (UTC)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

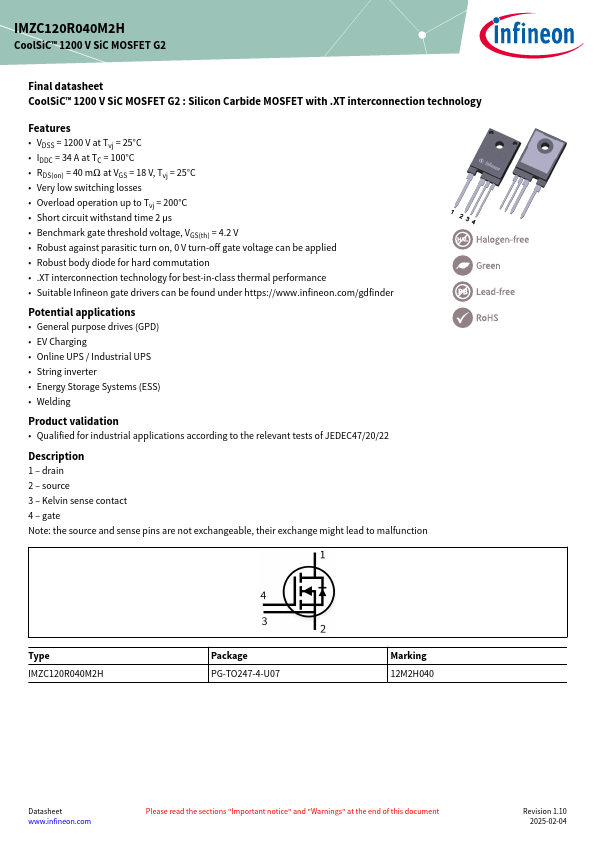

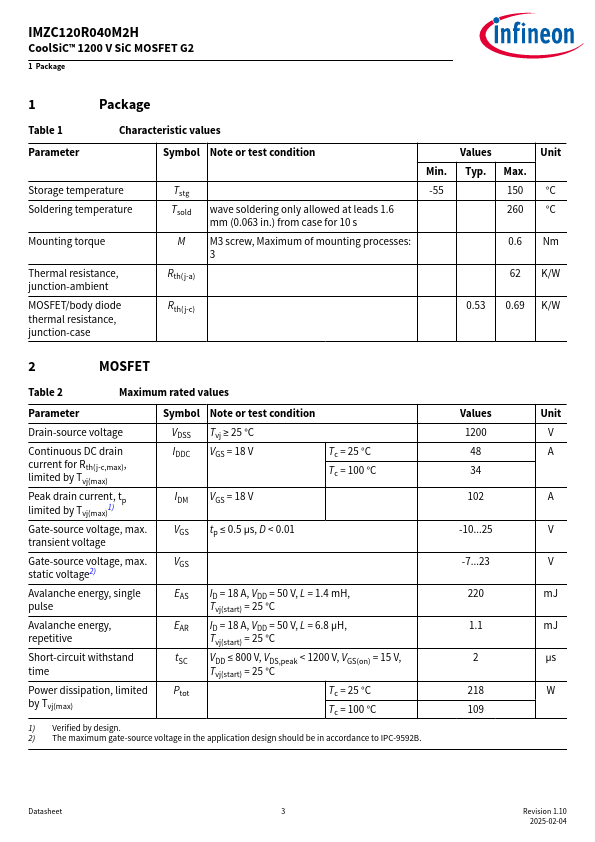

IMZC120R040M2H CoolSiC™ 1200 V SiC MOSFET G2 Final datasheet CoolSiC™ 1200 V SiC MOSFET G2 : Silicon Carbide MOSFET with .XT interconnection technology Features • VDSS = 1200 V at Tvj = 25°C • IDDC = 34 A at TC = 100°C • RDS(on) = 40 mΩ at VGS = 18 V, Tvj = 25°C • Very low switching losses • Overload operation up to Tvj = 200°C • Short circuit withstand time 2 µs • Benchmark gate threshold voltage, VGS(th) = 4.2 V • Robust against parasitic turn on, 0 V turn-off gate voltage can be applied • Robust body diode for hard commutation • .XT interconnection technology for best-in-class thermal performance • Suitable Infineon gate drivers can be found under https://www.infineon.
