IM523-L6A - 15A three-phase intelligent power module

Name: IM523-L6A
SKU: IM523-L6A-1578815

Infineon

📥 Download Datasheet

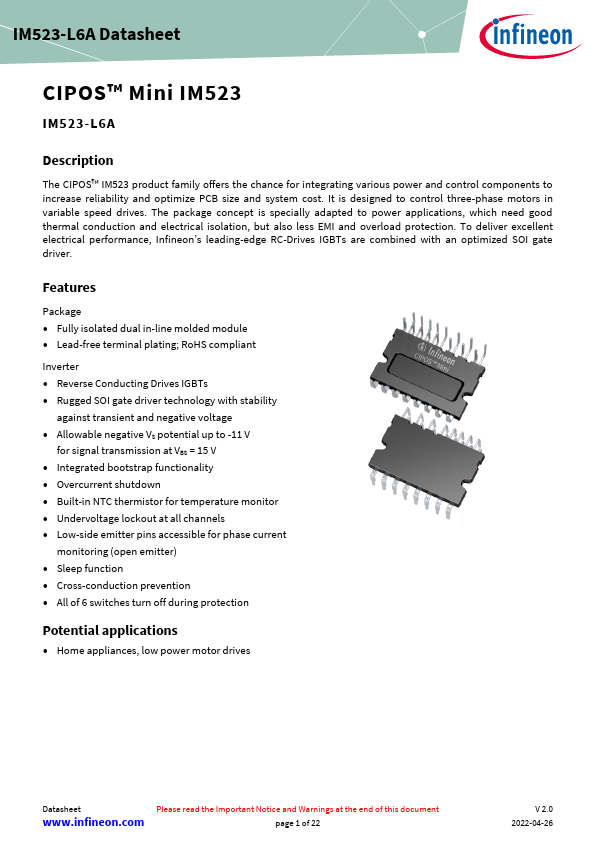

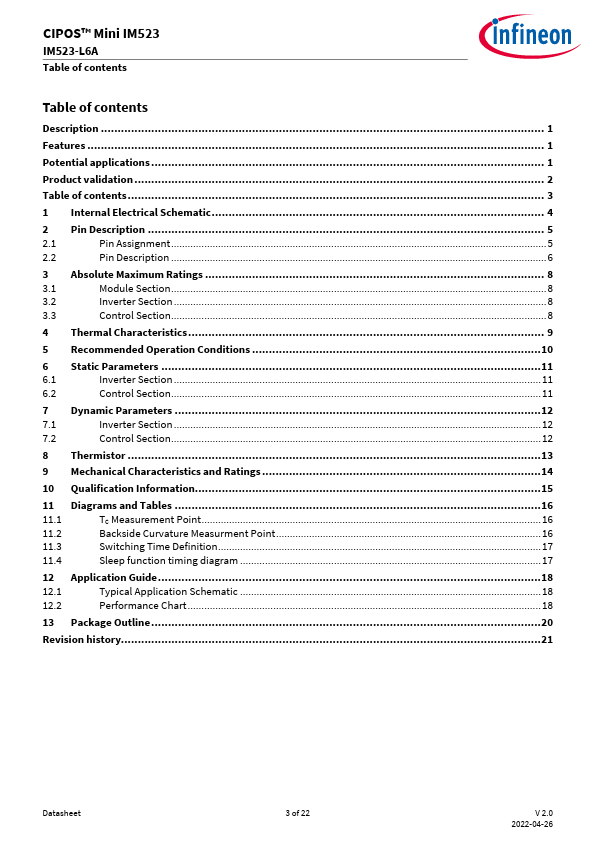

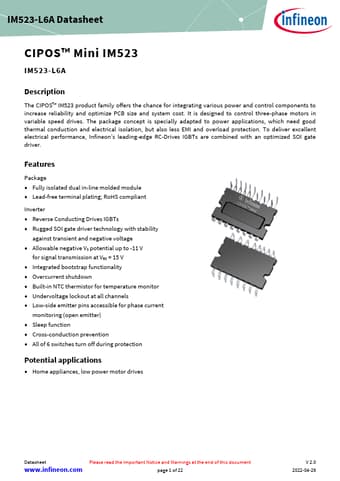

IM523-L6A Datasheet Preview — Preview of IM523-L6A PDF

Datasheet Details

Part number	IM523-L6A
Manufacturer	Infineon
File Size	1.06 MB
Description	15A three-phase intelligent power module
Datasheet	IM523-L6A-Infineon.pdf

IM523-L6A Product details

Description

The CIPOS™ IM523 product family offers the chance for integrating various power and control components to increase reliability and optimize PCB size and system cost.

Features

Package.
Fully isolated dual in-line molded module.
Lead-free terminal plating; RoHS compliant Inverter.
Reverse Conducting Drives IGBTs.
Rugged SOI gate driver technology with stability against transient and negative voltage.
Allowable negative VS potential up to -11 V for signal transmission at VBS = 15 V.
Integrated bootstrap functionality.
Overcurrent shutdown.
Built-in NTC thermistor for temperature monitor.
Undervoltage lockout at all channels.
