IM241-S6T2J, IM241-S6T2B - IGBT

Name: IM241-S6T2J
SKU: IM241-S6T2J-1578672

Infineon

📥 Download Datasheet

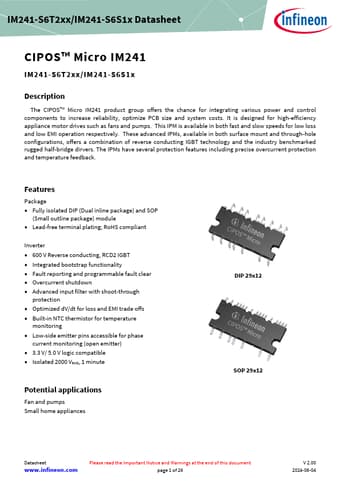

IM241-S6T2J Datasheet Preview — This datasheet PDF includes multiple part numbers: IM241-S6T2J, IM241-S6T2B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IM241-S6T2J, IM241-S6T2B
Manufacturer	Infineon
File Size	801.80 KB
Description	IGBT
Datasheet	IM241-S6T2B-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: IM241-S6T2J, IM241-S6T2B. Please refer to the document for exact specifications by model.

IM241-S6T2J Product details

Description

The CIPOSTM Micro IM241 product group offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs.

Features

including precise overcurrent protection and temperature feedback. Features Package.
Fully isolated DIP (Dual inline package) and SOP (Small outline package) module.
Lead-free terminal plating; RoHS compliant Inverter.
600 V Reverse conducting, RCD2 IGBT.
Integrated bootstrap functionality.
Fault reporting and programmable fault clear.
Overcurrent shutdown.
Advanced input filter with shoot-through protection.
Optimized dV/d.
