IM241-M6T2B2 - IGBTs

Download the IM241-M6T2B2 datasheet PDF (IM241-M6T2B included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for igbts.

Description

The CIPOSTM Micro IM241 product group offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs.

It is designed for high-efficiency appliance motor drives such as fans and pumps.

Features

  • including precise overcurrent protection and temperature feedback. Features Package.
  • Fully isolated DIP (Dual inline package) and SOP (Small outline package) module.
  • Lead-free terminal plating; RoHS compliant Inverter.
  • 600 V Reverse conducting, RCD2 IGBT.
  • Integrated bootstrap functionality.
  • Fault reporting and programmable fault clear.
  • Overcurrent shutdown.
  • Advanced input filter with shoot-through protection.
  • Optimized dV/d.

📥 Download Datasheet

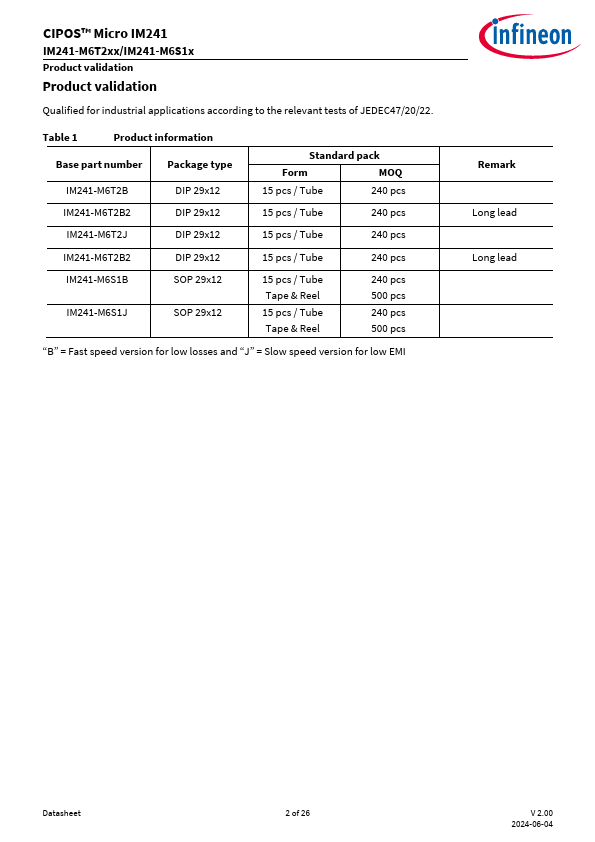

Note: The manufacturer provides a single datasheet file (IM241-M6T2B-Infineon.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • IM2000 - HIGH PERFORMANCE MICROSTEPPING SETP MOTOR CONTROLLER (IMS)
  • IM2000S - HIGH PERFORMANCE MICROSTEPPING STEP MOTOR CONTROLLER (ETC)
  • IM21GR - Signal Relays (TE)
  • IM21GR - IM Relay (Tyco)
  • IM21TS - Signal Relays (TE)
  • IM21TS - IM Relay (Tyco)
  • IM22DTS - Signal Relays (TE)
  • IM22GR - Signal Relays (TE)
  • IM22GR - IM Relay (Tyco)
  • IM22TS - Signal Relays (TE)
Other Datasheets by Infineon

Full PDF Text Transcription

Click to expand full text

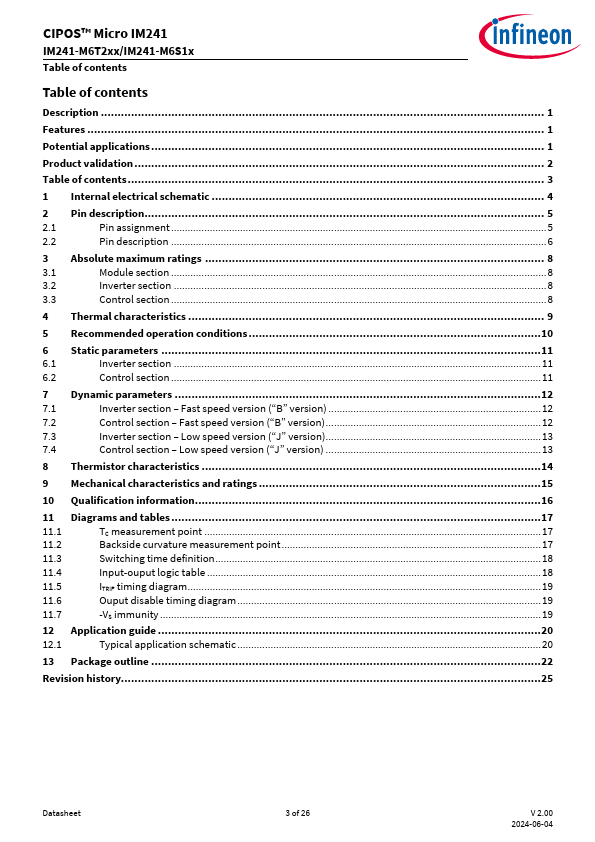

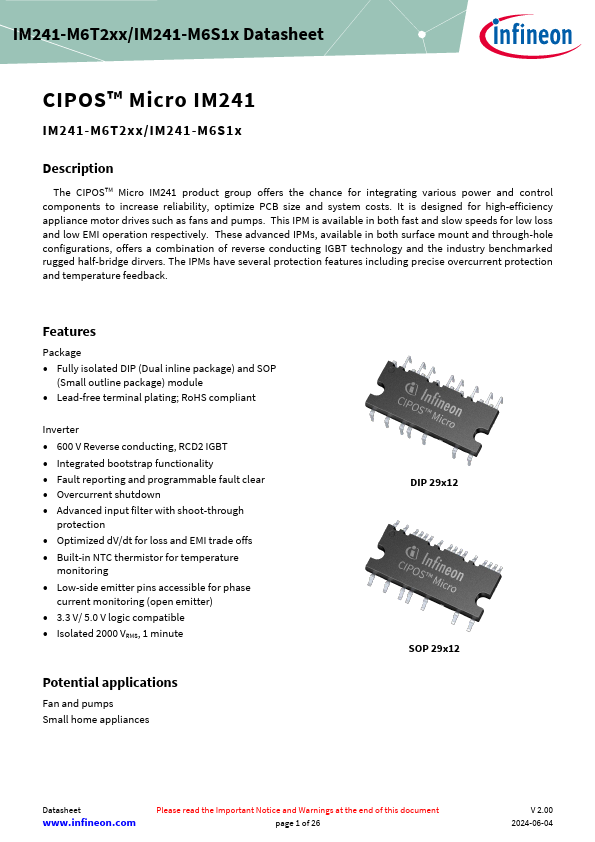

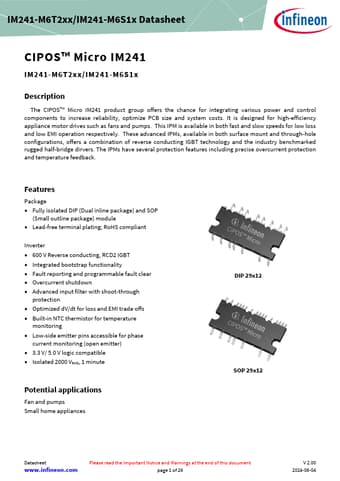

IM241-M6T2xx/IM241-M6S1x Datasheet CIPOS™ Micro IM241 IM241-M6T2xx/IM241-M6S1x Description The CIPOSTM Micro IM241 product group offers the chance for integrating various power and control components to increase reliability, optimize PCB size and system costs. It is designed for high-efficiency appliance motor drives such as fans and pumps. This IPM is available in both fast and slow speeds for low loss and low EMI operation respectively. These advanced IPMs, available in both surface mount and through-hole configurations, offers a combination of reverse conducting IGBT technology and the industry benchmarked rugged half-bridge dirvers. The IPMs have several protection features including precise overcurrent protection and temperature feedback.
