IKP08N65F5 IGBT

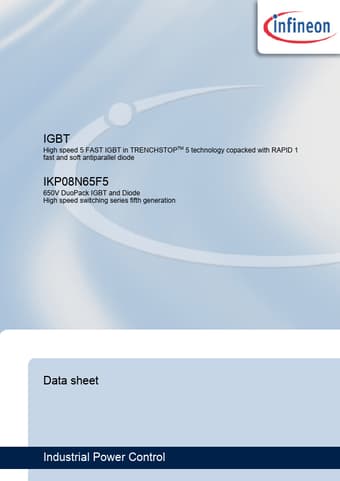

📥 Download Datasheet  Datasheet Preview Page 1

Description

IGBT High speed 5 FAST IGBT in TRENCHSTOPTM 5 technology copacked with RAPID 1 fast and soft antiparallel diode IKP08N65F5 650V DuoPack IGBT and Diode.

📥 Download Datasheet

Preview of IKP08N65F5 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* C High speed F5 technology offering
* Best-in-Class efficiency in hard switching and resonant topologies
* 650V breakdown voltage
* Low QG
* IGBT copacked with RAPID 1 fast and soft antiparallel diode
* Maximum junction temperature 175°C
* Qualified

Applications

* Pb-free lead plating; RoHS compliant
* Complete product spectrum and PSpice Models: http://www. infineon. com/igbt/ G E C Applications:
* Solar converters
* Uninterruptible power supplies
* Welding converters
* Mid to high range switching frequency
